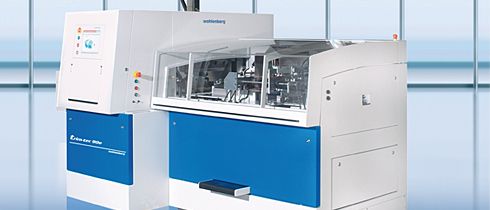

trim-tec 90e
An inline High-Speed Three-Knife Trimmer with integrated counter stacker for perfect binding systems in the upper speed range. Outstanding performance feature of the trim-tec 90e is the new dynamic-drive technology by which a considerable performance increase and significant reduction of setup time can be realised – this is a great contribution to the efficiency increase of the total perfect binding system. Visible proof of this new technology is the new design of the three-knife trimmer, which takes ergonomic knowledge into account, thus reducing the operator’s workload.
System extensions (optional):
- Wireless keyboard for the input of alphanumeric job data and text
- Smart NaviDesk, integrated measuring system for easy and precise format-recording
- Small format device
- Large format device
Advantages
- Closed cutting table for utmost gentle product handling
- Improved ergonomics by aluminium cutting table and pressing plate
- Direct access to cutting cell
- Automated stencil fixing

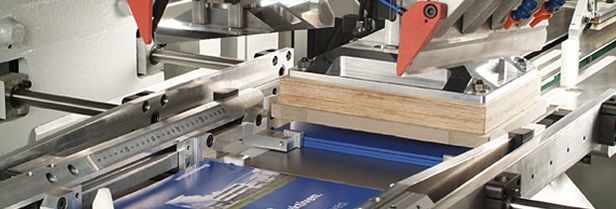

- Clamping and positioning system in dynamic-drive technology
- Utmost smooth running with maximum machine output
- Positioning system with conveyors
- Format setting via Navigator e
- Steplessly motorised adjustment during production
- Cam-shaped swinging shear cut
- Machine frame cast in one piece guarantees high trimming quality
- Rapid change-over from pusher- to counter operation
- Optimised cut-off disposal
- New positioning system with clip-on technique
- Interchangeable parts for pile height only
- Silicone spraying device as standard
Technical Data
- Mechanical speed:500 – 5400 cycles /h
- Product height, trimmed:135 – 380 mm
- Product width, trimmed:100 – 300 mm
- Small format , trimmed:70 x 100 mm (optional)
- Max. pile height 70 mm(All details product- and performance related)
