WOHLENBERG

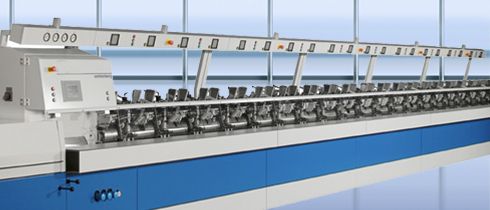

Streamer

Ergonomic. Efficient. Successful.

The Streamer is based on a modular machine concept marked by a high flexibility and excellent accessibility. The individual feeders are designed as interchangeable system suited to be separately equipped with a vertical sheet feeder, card gluer, block feeder or similar devices. The new dynamic-drive technology allows disconnecting the drive of the feeders as well as the transport channel. The combination of a shock-free product transfer from magazine into transport channel on an even level and the products’ being accelerated in running direction ensures a high production performance. A gentle product handling is likewise guaranteed. Due to the changed running direction – from left to right – the ‚right-hand brochure page’, highly favoured for advertising purposes, is easily accessible in the machine. This way further finishing processes as e.g. affixing of cards and CDs can be integrated. With the Winspector we provide, first time, a high-performance camera system for a combined print image recognition and barcode reading which ensures a nearly faultless miss-fed-sheet recognition, even in case of difficult products. The Winspector is a self-learning system which is automatically activated during the machine setup, identifying the best position for image recognition. First time Wohlenberg provides a stacker pile delivery. Particular feature are the servo-controlled drop boards. A minimized transfer height guarantees a gentle product handling.

System extensions (optional):

  • Handfeeding station with 1 or 2 pockets
  • Feeding station as handfeeding station
  • Feeding station as block feeder
  • Feeding station as card- and label dispenser
  • Feeding station as sample dispenser
  • Delivery / reject gate
  • Print image control
  • Navigator e: System-spanning standardized , graphical interactive user interface
  • Dynamic-drive technology: Products are, accelerated in running direction, transferred into the transport channel
  • Interchangeable system for vertical sheet feeder, card-gluer, block feeder and individual handfeeding station
  • Inclined vertical sheet feeder for high filling volume in magazine
  • Synchronized application of air/vacuum and transport belts in magazine bottom for safe separating of layers and singe sheets
  • Electrostatic blocking with up to 30 kV for processing of 3-side open layers
  • Automatic missing sheet- and double sheet control ACC
  • Winspector: Camera system for miss-fed sheet recognition and barcode reading
  • Vertical transport channel for gentle product transport on the spine
  • Motorized adjustment of channel width
  • Motorized adjusted reject gate
  • Pile delivery for safe and gentle stacking of pre-collected layers, with and without criss-cross offset
  • Hopper loader for processing of bundled products
  • Mechanical speed   : 1000 – 8000 cycles
  • Product height: 105-485 mm
  • Product width; 75 – 320 mm
  • Number of stations. 4 – 32(All details are product- and performance-related)
