WOHLENBERG

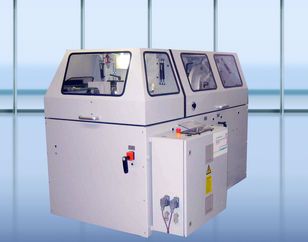

Book Splitter

TS 8000

The book splitter TS 8000 can be used both as stand-alone machine and in inline operation. The book splitter increases the perfect binding efficiency and can be integrated into each perfect binding line, thus being a further system component from the Wohlenberg product range. The frequency-controlled product transport guarantees an exact product alignment. The second saw blade (option) for the tail cut guarantees uniform spine lengths.

Options

- Second saw.
Tail trim to produce products with equal spine length.
- Infeed conveyor
- Turning conveyor
- Different dust collecting options

Equipment

- transfer and lifting device for the saw
- speedometer and product counter
- speed control for chain transport
- PLC-device with operating terminal - two saw blades

Format range unsawn with one saw cut:

product height: 250 – 520 mm
product width: 100 – 250 mm
product thickness: 5 – 62 mm
product height sawn: 123,5 - 258,5 mm
thickness of blade: 2,6 mm
power saw motor: 7,5 kW
delivery height: 1000 mm

Technical data
 F ormat range unsawn with two saw cuts:
product height:                           383 – 461 mm
product width:                            100 – 250 mm
product thickness:                      5 – 20 mm

format range sawn with two saw cuts:
product height:                           123,5 - 258,5 mm
tail trim:                                        3 – 25 mm
