MBA

Monza

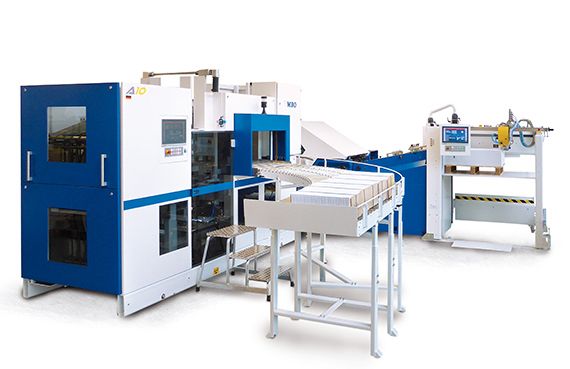

The K8 RS combined with the revolutionary log stacker delivery A10

Monza

The K8 RS is the ideal folding system for high productivity. With the capability of speeds up to 275 m/min., and its extensive use of automation, the K8 RS is an excellent choice for high volume and fast make-ready.

Features K8 RS

The K8 RS is built on the proven K8 folding platform, plus:

  • 275 m/min. speed upgrade for up to 20% productivity increase

  • Large palletized feeder FP 800/130 to accommodate taller pallets

  • Improved suction head for quick and reliable

    separation of paper sheets

  • Extended infeed for improved sheet alignment and better fold quality

  • Waste sheet ejector to minimize production

    interruptions

  • Advanced M1 control system technology, with 15.6” touchscreen HMI, for efficient and intuitive operation

  • Extremely versatile and available in the following configurations: S-KTL , S-KTLT and S-KTZ



Features A10

  • Intuitive machine controls and operation functions

  • Reduced physical labor for operators

  • Engineered for high speeds

  • Auto-loading system for the boards via magazine

  • Extremely high quality signature bundles benefit subsequent processes

  • Integrated press with up to 4 tons of pressure

  • Durable polyethylene or polypropylene banding straps

  • Log length range between 380-800 mm

  • Buffer table along the delivery allows operators to multi-task

  • Two modes of operation: Single Sheet (for product that requires drying or curing time – up to 15,000 sheets/hour) or Shingled Stream

  • Sheet ejection for control or bad sheets

  • Non-stop production, even during log changes

  • Optional: crane, conveyor belt, palletized log bundles



Subject to change without notice.
