High-speed folding system for industrial signature production

le mans

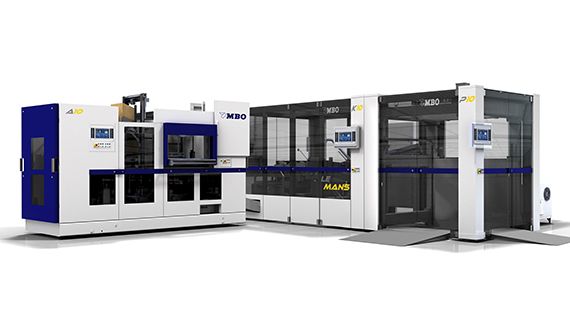

The Le Mans high-speed folding system leaves everything that has come before it in the dust in terms of production speed and ergonomics. It consists of the P10 Palletized Feeder, the K10 Combi-Folder and the A10 Log Stacking Delivery, and is ideal for companies that need to process annual folding volumes around or above 70 million sheets.
The Le Mans is fully automated and will even make small adjustments during production to ensure the highest accuracy. This allows the operator to set up the machine once per job, leaving him free to concentrate on other tasks like monitoring workflow and logistics. This level of automation, as well as the automated pallet stacker or crane arm, demands very little physical labor from the operator.
Depending on the grammage, the output of the Le Mans can reach 23,000 16-page A4 sheets per hour. This exceeds the performance of all other folding systems, as traditional deliveries are not able to keep up with these high production speeds. With the A10 Log Stacker, these speeds are possible, with minimal labor from the operator. In addition to shingled stream mode, the A10 Log Stacker can also be operated in individual sheet mode for sensitive products.
Cameras in parallel fold, crossfold, and threefold provide continuous production monitoring. In addition, images are saved continuously so the operator can also see past sheets and monitor the quality of the entire job.

Feeder P10

  • Pile height max.: 140 cm; 55 1/8"
  • Infeed width min./max.: 40–103 cm; 15 3/4"–40 1/2"
  • Infeed length min./max.: 40–130 cm; 15 3/4"–51 1/8"
  • Production speed min./max.: 30–275 m/min.; 1,182–10,835 inch/min.
  • Control: M1-Control



K10 S-KTL, Parallel Fold

  • Infeed width min./max.: 40–103 cm; 15 3/4"–40 1/2"
  • Infeed length min./max.: 40–130 cm; 15 3/4"–51 1/8"
  • Folding length min.: 9 cm; 3 1/2"
  • Number of buckle plates: 4
  • Fold roller diameter: 44 mm; 1 3/4"
  • Slitter shaft diameter: 40 mm; 1 5/8"
  • Production speed min./max.: 30–275 m/min.; 1,182–10,835 inch/min.
  • Control: M1-Control



K10 S-KTL, Cross Fold

  • Infeed width min./max.: 40–103 cm; 15 3/4"–40 1/2"
  • Infeed length min./max.: 20–72 cm; 7 7/8"–28 3/8"
  • Number of buckle plates: 1
  • Fold roller diameter: 44 mm; 1 3/4"
  • Slitter shaft diameter: 40 mm; 1 5/8"
  • Production speed min./max.: 30–550 m/min.; 1,182–21,653 inch/min.
  • Control: M1-Control



K10 S-KTL, Three Fold

  • Infeed width min./max.: 20–70 cm; 7 7/8"–27 1/2"
  • Infeed length min./max.: 20–53 cm; 7 7/8"–20 7/8"
  • Fold roller diameter: 44 mm; 1 3/4"
  • Slitter shaft diameter: 40 mm; 1 5/8"
  • Production speed min./max.: 30–300 m/min.; 1,182–11,811 inch/min.
  • Control: M1-Control



Log Stacking Delivery A10

  • Infeed width min./max.: 21–55 cm; 8 1/4"–21 5/8"
  • Infeed length min./max.: 10,5–32,5 cm; 4 1/8"–12 3/4"
  • Infeed height min./max.: 30–80 cm; 11 3/4"–31 1/2"
  • Sheet thickness (signature) min./max.: 0,8–3,5 mm; 1/16"–1/8"
  • Board thickness min./max.: 3–12 mm; 1/8"–1/2"
  • Stack pressure max.: 5,000 N
  • Production speed max.: 40 Sec./Log (dependent upon page count and paper quality)
  • Control: M1-Control



Subject to change without notice.
