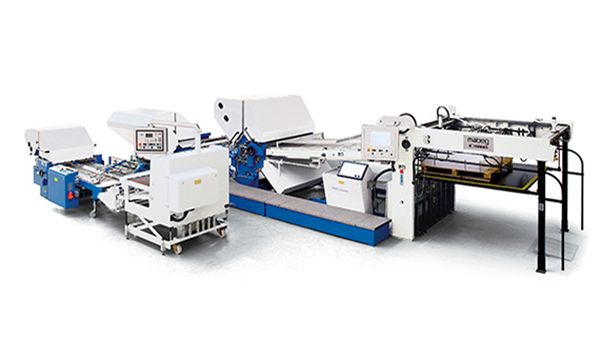

      T 1420 Perfection

            The ultimate benchmark in large format

Unique handling comfort in large format

Tailor-made folding solution
Buckle folding machines by MBO convince with their universal application range and unique bandwidth of folding types.
All models of the Perfection series basically stand for the highest possible folding performance and maximum output. MBO folding machines and features are orientated on the users – both regarding practical requirements and the variety of the paper medium. Convenience plays a major role. The simpler the processes and workflows, the more efficient becomes production. With their high performance and excellent quality, the T 1420 Perfection provides the ideal preconditions for highest productivity. A broad range of folding types guarantee that the Perfection models live up to their names.
The equipment features of our folding machines have been especially designed for the purpose of their application. We never rest on our well-proven product development achievements but always try to recognise new requirements as early as possible. Ideally soon enough to offer you a solution before you even face the problem. Some of these special solutions can be found on the T 1420 Perfection.

Learn more...
MULTIPLATE buckle folds
All setting elements like the folding length, position and pretensioning of the lower plate lip, inner width and clamping of the buckle plates are installed on the operator side, thus ensuring both ergonomic and efficient handling for the operator. In order to be able to quickly and comfortably swing the deflectors, the T 1420 Perfection is equipped with pneumatic cylinders which automatically regulate the retraction and extension movements. Therefore, “winding out“ the buckle folds is a thing of the past. The through sheet stop ensures that the sheet lies exactly against the stop and is not deformed.

Slitter shaft cassette MWK
The slitter shaft cassette of the Perfection series can be drawn out and reduces changeover times of one of the most time-consuming working steps, the positioning of the knives, to a minimum, thus ensuring clearly faster availability. In an ergonomically favourable height, the cassette can be easily and quickly drawn out on the operator side. In this position, the slitter shafts can be easily charged or a prepared pair of slitter shafts can be conveniently inserted – without the dangerous reaching into the machine on combination folding machines, without to circle around the machine a couple of times, without shifting the subsequent folding unit on buckle folding machines. The scale on the cassette allows the precise adjustment and positioning of the knives. Ideally suited for repeat jobs since the position of the knife can be reproduced.

Top quality at top speed
MBO Perfection models are the only buckle folding machines worldwide operating without the „ball“ transport system which is very susceptible to markings. In order to reliably avoid markings even for high throughput speeds, MBO applies the innovative vacuum infeed and alignment system VIVAS, as well as patented HIGHSPEED-GUIDE conical rollers.


Benefits
  • Unique MBO features make the handling of large formats easier andfaster, allowing the machine to beoperated by one person only

  • Double stream, RFE and automation allow shorter set-up times and a moreefficient production, thus makingyou considerably more productiveand competitive when working withthe T 1420 Perfection

Features
Double stream
Slitter shaft cassette MWK
MULTIPLATE
Standard equipment and options

Equipment:

  • NAVIGATOR Control with TOUCHSCREEN
  • MABEG palletised feeder M 6/1650
  • AIRSTREAM double alignment table
  • Sheet alignment by Vacutable
  • 4 MULTIPLATE folding buckles with swing deflectors (folding unit I)
  • COMBIPLATE combination folding buckles
  • Low maintenance and low noise belt drive
  • Ring folding rollers with Soft PU-roller coating (folding unit I)
  • Scoring, perforating and cutting devices for standard operations
  • Slitter shaft cassette MWK for single rear slitter shafts with plug bearings
  • Transfer table with double sheet and misfolded sheet ejection
  • HIGH-SPEED-GUIDE


Alternative/Additional Equipment:

  • DATA MANAGER
  • MABEG palletised feeder M 6/2050
  • MBO ramp
  • Slitter shaft cassette MWK (folding unit II and III)
  • Noise insulation unit
  • HIGH-GRIP spiral fold rollers
  • Strip cutting device
  • Special and edge trimming device
  • Multiple perforation unit
  • Punch perforation unit
  • Divided hard metal slitters (punching and V perforation), emptying and recharging of the slitter shafts no longer required
  • Double stream unit with upwards folding conveyor table
  • Three-directional stream unit(folding unit II)
  • Sheet return unit RFE(folding unit III)
  • Pre-slitter shafts (folding unit II)
  • Various peripheral units
  • Various deliveries
  • Automation RAPIDSET
    • Sidelay
    • Buckle plates and deflectors

We inform users of MBO buckle folders with MS/MC control, series T460/B118, T530/B21, T535E, B21-IFF, B26E, B30E/B30A and T700P-T1420P that a modification kit which includes an update of the safety status is available. For further information, please contact: +49 (0) 7191 / 46-500 or  milica.damcevska@mbo-folder.com .
