BAUMANN-WOHLENBERG

      Storage-Board Systems

            (unloadres for piles < 1000)

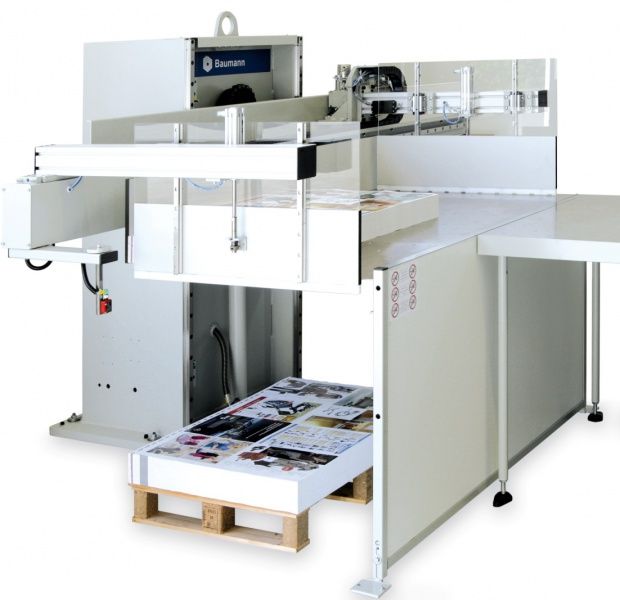

Baumann BA N

The ergonomic and economically effective way to restack single and multiple cuts with high precision. The manual restacking of paper and cardboard after the cutting-process requires a lot of time and effort. The unloader gives you the opportunity to automate the restacking process. Unloaders BA N take up the material at the level of the table. The pile is positioned underneath the unloader table. The reams are restacked until a maximum pile height of 1100 mm has been reached. Unloaders BA N can either be installed on the right or on the left hand-side of the cutter. The design is very innovative (especially the principle of controlled axis), material and finish are of high-quality. The user friendly operator's panel with clear text display offers the oportunity to change all relevant parameters.

Advantages

  • Increased productivity
  • Very good restacking results
  • Careful material handling
  • Latest technology
BA 2N BA 3N BA 5N
Sheet format max. [mm]* 650 x 840 800 x 1200 900 x 1300
Pile height [mm] 1100 1100 1100
Ream weight [kg] 80 150 150
Pallet height min. [mm] 130 130 130
