BAUMANN-WOHLENBERG

      BSH W

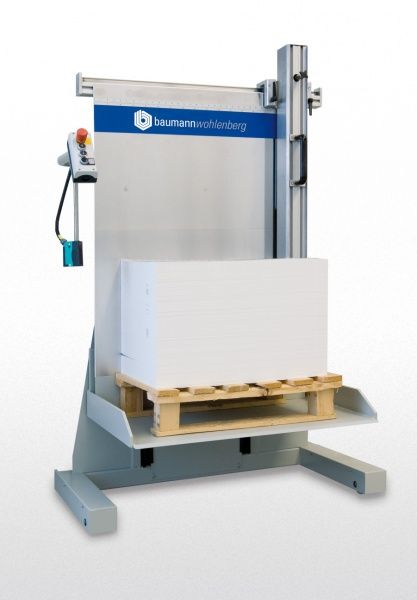

Baumann BSH W

Pile Hoists with platform and adjustable angle-stop are made for the manual restacking of multiple-cuts, banded or packed products. The back of the pile hoist serves as alignment-stop. An adjustable alignment-stop, which is also available for larger formats guarantees an exact restacking result. The automated functions relief the operator’s physical strain while increasing the efficiency of the high-speed cutter.

Advantages

  • Piles are lifted and lowered hydraulically
  • The platform has a bevelled front-edge so that even large formats can easily be loaded onto the platform (loading with a pallet truck is possible)
  • An adjustable photo-cell verifies constantly that the top of the pile remains always on working-height

Functions

  • Destacking (lifting)
  • Restacking (lowering)
  • Pallet exchange

Features

  • Piles are lifted and lowered hydraulically
  • The platform has a bevelled front-edge so that even large formats can easily be loaded onto the platform (loading with a pallet truck is possible)
  • An adjustable photo-cell verifies constantly that the top of the pile remains always on working-height

BSH 2 - 450 W BSH 3 - 650 W BSH 5 - 1200 W
Platform [mm] 650 x 900 785 x 1150 990 x 1350
Loading capacity [kg] 450 650 1200

BSH 6 - 1200 W BSH 6 - 1600 W BSH 7 - 2000 W
Platform [mm] 1190 x 1500 1185 x 1500 1235 x 1700
Loading capacity [kg] 1200 1600 2000
