Glunz & Jenson

      Raptor + T

Trouble-free cleaning and maintenance

An easy-lift top cover provides access to snap lock mounted brushes, rollers, spray bars and guides, and they are replaced in minutes – without the use of tools or the need to re-calibrate.

Touch screen controls

Easy to master graphical touch screen control panel with optional native language plug-in and built-in remote support and diagonostics.

The GNUC II control panel is a fully graphical touch screen display which is used on many Glunz & Jensen manufactured products.

Automated monitoring and regulation

Very easy to operate, even unattended, as the processor monitors fluid and temperature levels and adjusts accordingly. If user involvement required, it alerts the operator and provides on-screen step-by-step help.

Universal CtP compatibility

The universal front panel is prepared for online integration with any CtP - all you need is a simple CtP-specific adaptation kit.

Approved and accredited

You will be safe with our products. We have designed and build the products according to the current standards and an independent institute has inspected and approved the products for CE safety standards, UL, c/UL and RoHS. All certificates are available upon request.

Standard or custom configurations

Built with a standard configuration for the most typical applications, it can be reconfigured with a dedicated configuration to give the widest possible latitude for a specific applications. A USB port allows for configuration back-up and restoration.

Preventive Maintenance Kits

The necessary original spare parts and step-by-step instructions to complete the recommended annual maintenance on you plate processor, to keep it in top running condition.

Remote enabling system

Monitor, correct settings and diagnose the condition of the processor via the local network or modem, for example check chemistry, replenish and waste/water levels, temperatures, or if there is a plate jam.

Closed stand

Keep your pre-press room tidy and organized by hiding the containers with easily fitted side panels. Are easily removed without tools to give full access to the space under the processor.

Drip tray

Keep your pre-press room tidy and organized with a drip tray which lay on the floor below the processor to collect and hold fluids which are accidentally spilled onto the floor.

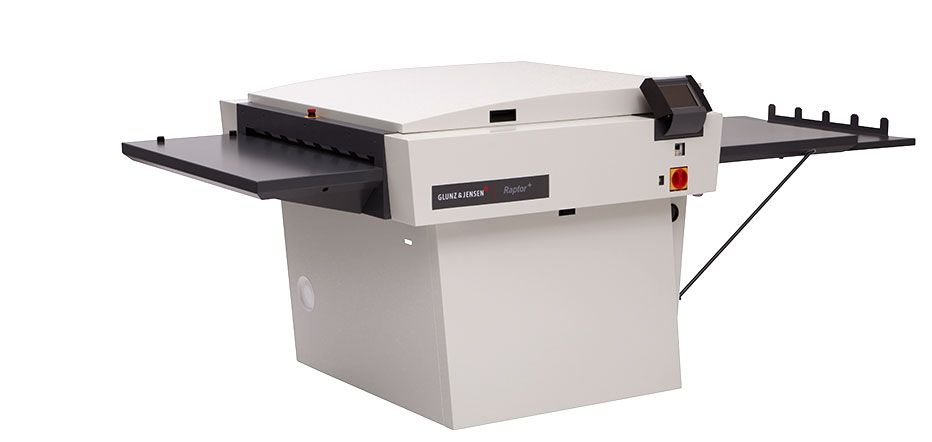

Delivery table

The delivery table manages the processed plates while the operator feed plates to the processor. It is mounted at the processor exit and collect plates as they have been processed. For automatic online configurations it is recommended to use a stacker instead, which can handle a higher capacity.

Feed table

Easy feeding of plates into the processor when it is used in an offline or manual configuration by adding a table surface/top for resting plates onto when they are fed into the processor. For inline configurations you can use a conveyor to connect with the CtP, instead of a feed table.

Water saving

Reduce your water consumption with more than 85% by adding the water saving option which circulate/re-use a most of the water.

Remote enabling system

Monitor, correct settings and diagnose the condition of the processor via the local network or modem, for example check chemistry, replenish and waste/water levels, temperatures, or if there is a plate jam.
