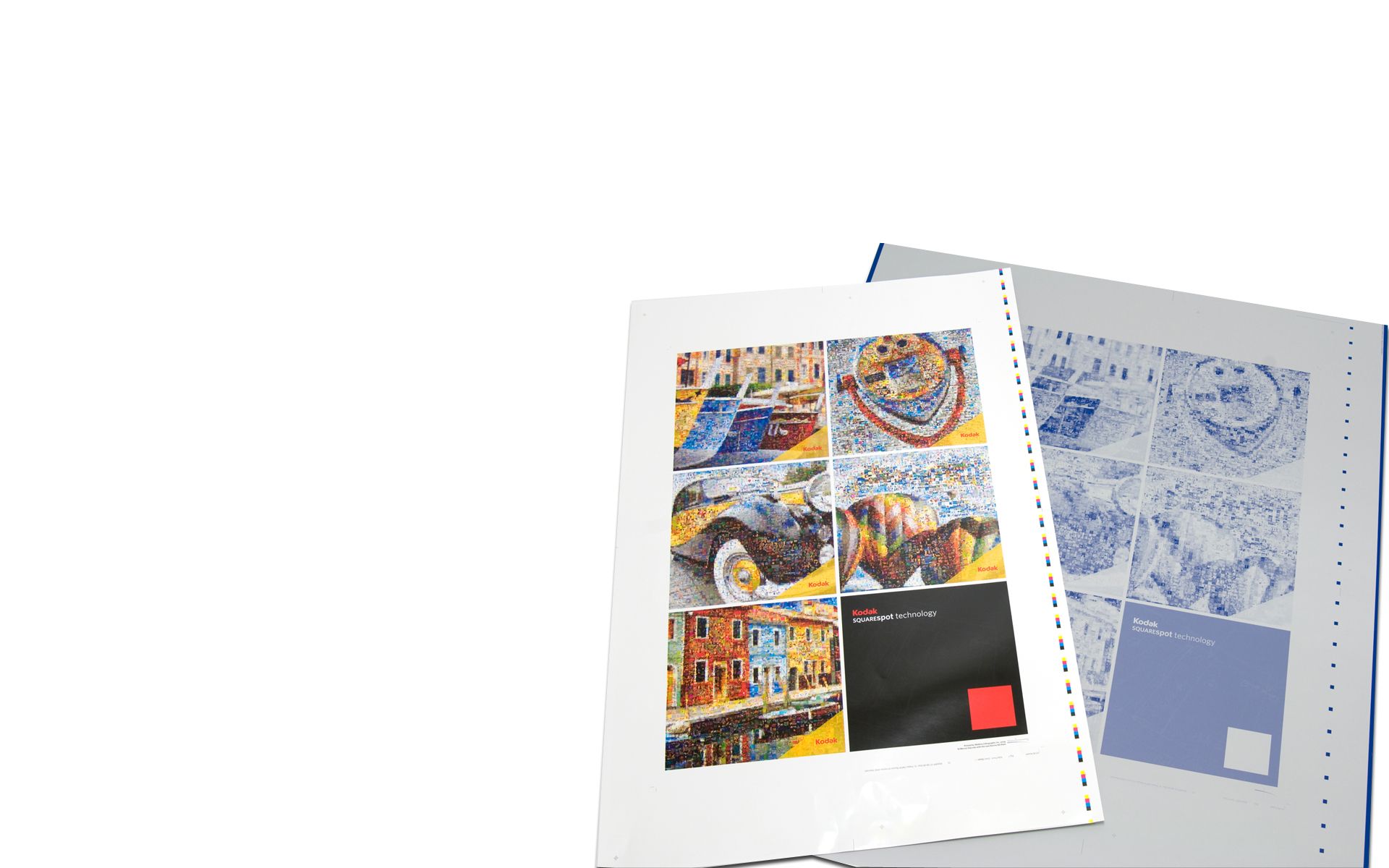

ELECTRA XD Thermal Plate

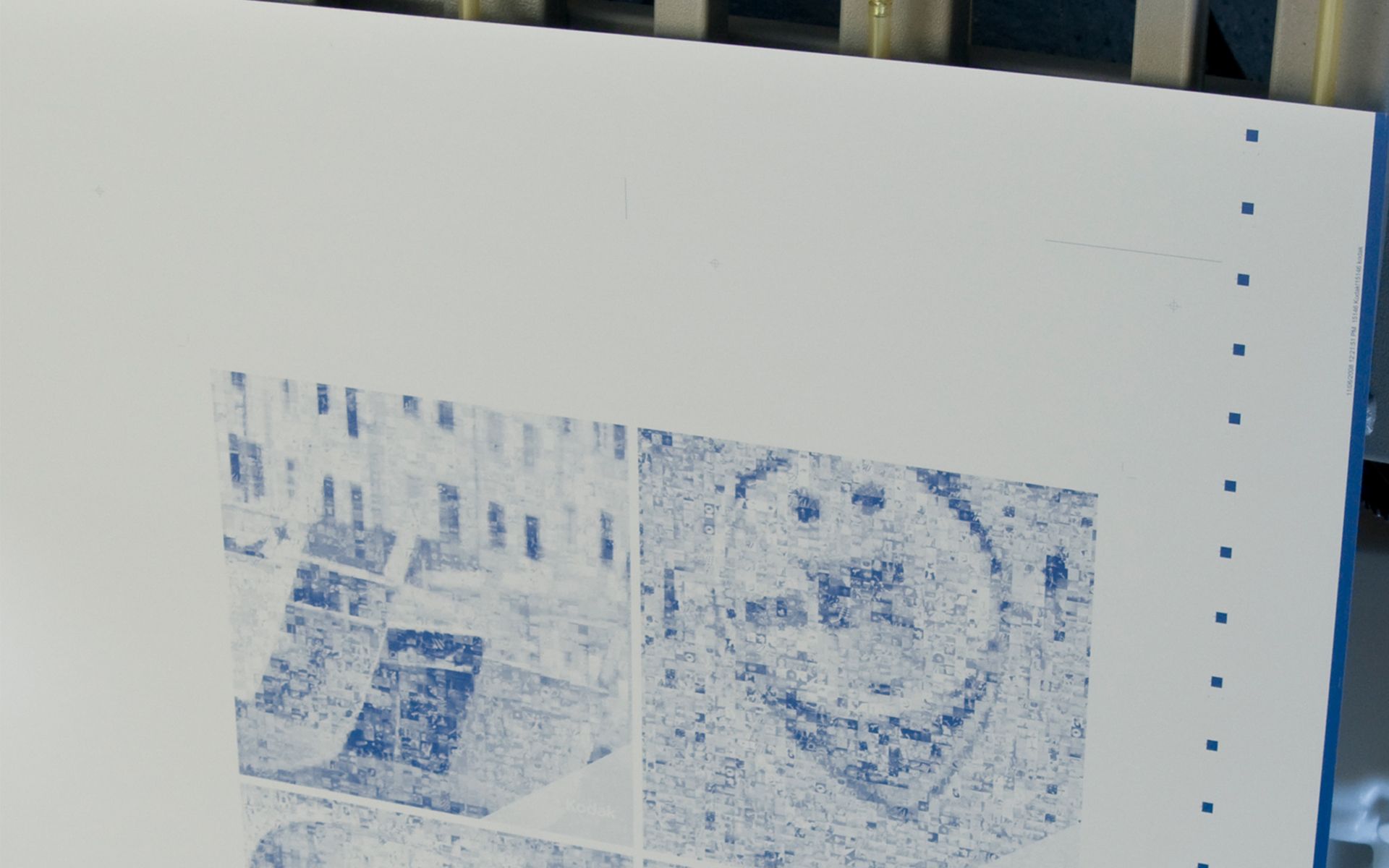

Highest resolution capability

Consistent, high-resolution print for high-quality print jobs.
10-micron FM or 450 lpi AM capable.

Excellent Productivity and Efficiency

Elimination of preheating and fast imaging and processing help maximize productivity in prepress

Minimizing environmental impact

Low chemistry consumption and long bath lives with the KODAK 400 xLo Chemistry System.
No special new plate processor needed.

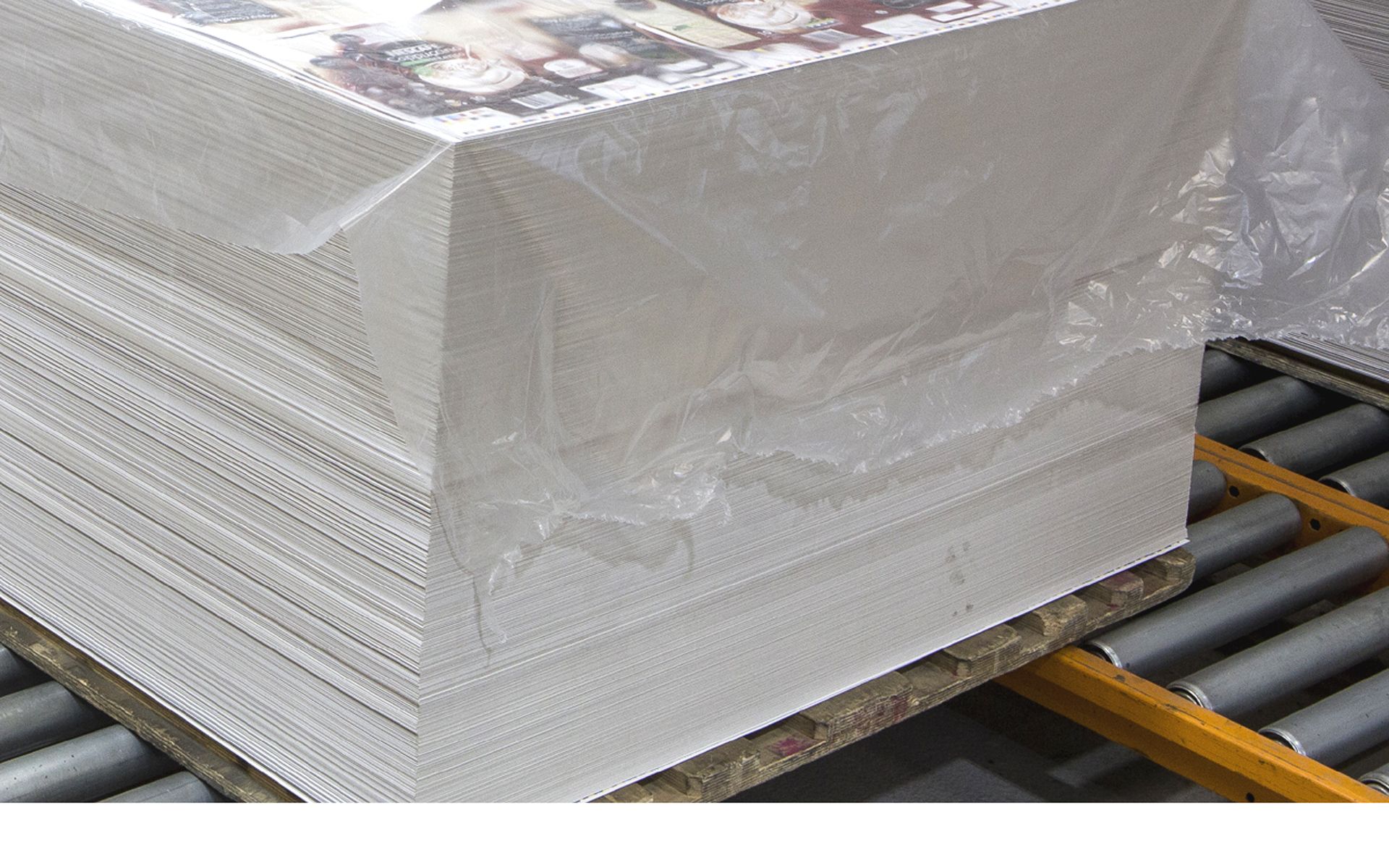

Extremely long baked run lengths

Can be postbaked for extremely long runs of over 1 million impressions


Non-ablative, positive working, thermal digital plate with wide operating latitude; optional postbake for extremely long runs and resistance to aggressive press chemistry such as UV inks and blanket washes


High-quality medium to long-run sheetfed and heatset / coldset web offset applications

Spectral sensitivity

800 - 850 nm

Laser energy required

90 - 130 mJ/cm with KODAK 400 xLo Chemistry SystemDependent on imager type, configuration and resolution.

AM Resolution

1% to 99% @ 450 lpiDependent upon capability of imaging device.

FM Resolution

10-micron stochasticDependent upon imaging device capabilities and screening algorithms. For optimum FM performance, Kodak recommends  KODAK STACCATO Screening on  KODAK SQUARESPOT Imaging Technology Devices.

Run length

350,000 impressions unbaked1,000,000+ bakedDependent upon image resolution, press, press chemical, ink and paper conditions.


None required - daylight handling
