FLEXCEL NX System

            Leading edge innovation for best-in-class flexographic printing

Powered by the NX ADVANTAGE

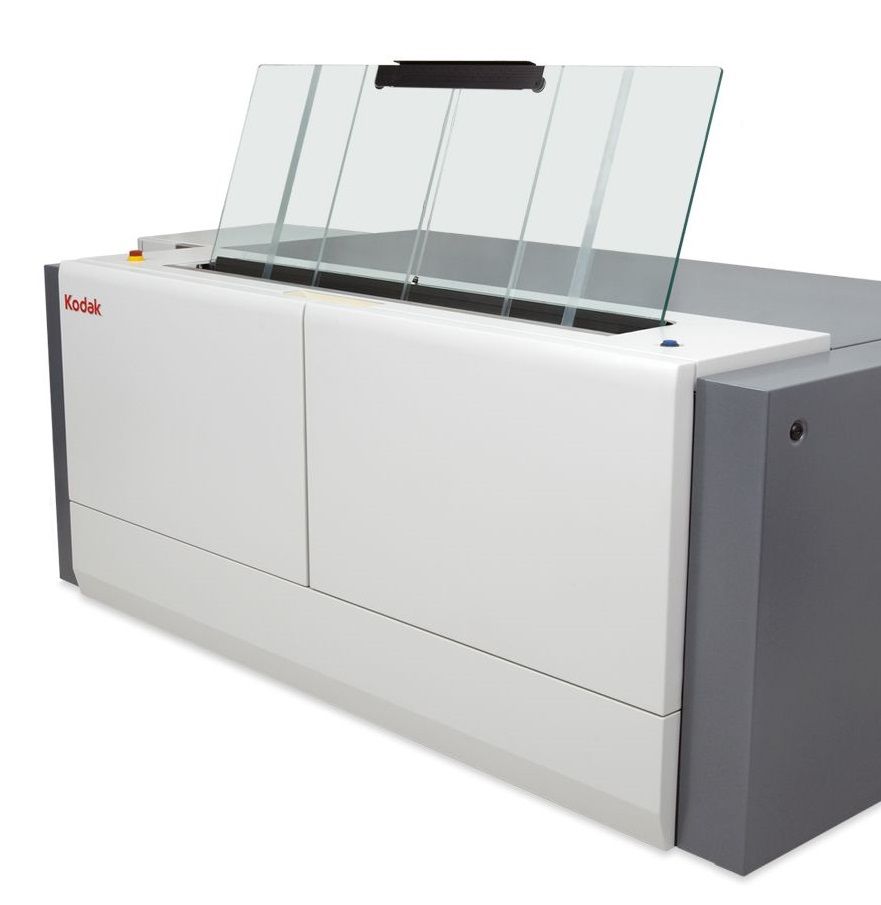

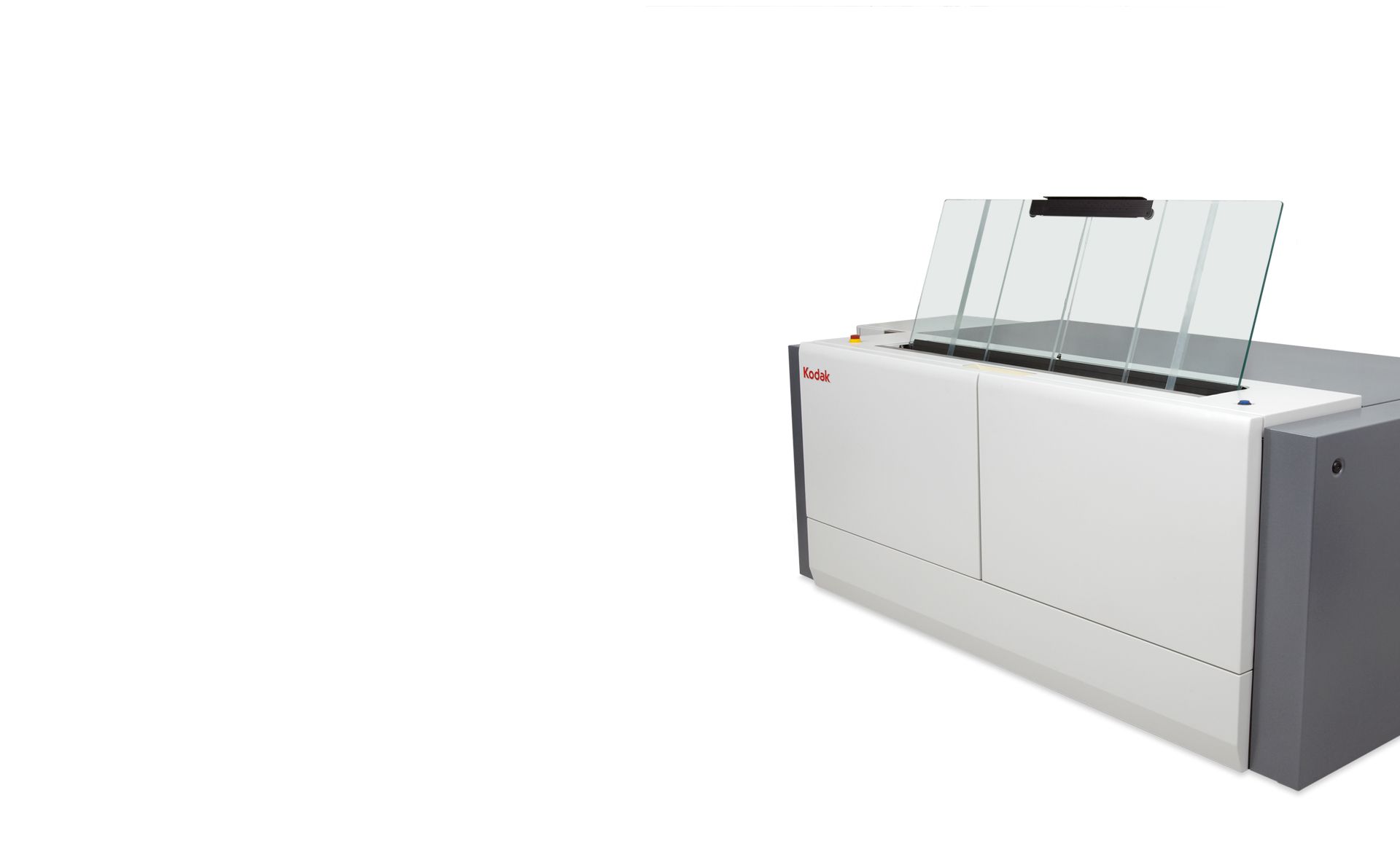

The newly announced KODAK FLEXCEL NX System '۱۶ is designed to maximize the capability of a digital flexo plate in the pressroom.

Powerful Benefits

Enables consistent, high quality print with maximum on-press efficiency across the full gamut of flexo print applications.

Differentiated Technology

Unique Kodak imaging technology enables capabilities beyond those of traditional high definition plate systems.


KODAK FLEXCEL NX Systems are available in four different configurations, and are suitable for virtually every flexo application. Each system ships as a completely integrated turnkey solution.

KODAK Certified Partners

The symbol below is the mark of a trusted partner as well as client confidence. In order to display this Flexcel NX Certification mark companies must demonstrate that the plates they produce, or print with, are consistently made to standard Kodak global specification representing a feature set that drives industry-leading efficiency, stability and quality in print. The certification process is supported by data measurement and recommendations from satisfied clients.
سیستم فلکسل NX واید (عریض) ۵۰۸۰ FLEXCEL NX Wide FLEXCEL NX Mid FLEXCEL NX Narrow
Imager dimensions (H x W x D) 120 x 323 x 224 cm 47 x 127 x 88 in Loading table height: 84 cm  / 33 in 120 x 254 x 181 cm 47.2 x 100 x 71.3 in Loading table height: 83 cm / 33 in 160 x 200 x 120 cm 63 x 79 x 48 in 160 x 200 x 120 cm 63 x 79 x 48 in
Min. plate size 610 x 762 mm 24 x 30 in 610 x 762 mm 24 x 30 in 610 x 762 mm 24 x 30 in 610 x 762 mm 24 x 30 in
Max. plate size 1270 x 2032 mm 50 x 80 in 1067 x 1524 mm 42 x 60 in 800 x 1067 mm 31.5 x 42 in
Resolution 2400 dpi 2400 dpi 2400 dpi 2400 dpi
Screening (flexo applications)
  • 300 lpi maximum linescreen (0.4% to 99.6%)
  • KODAK DIGICAP NX Patterning
  • KODAK MAXTONE Screening and KODAK MAXTONE CX Screening
  • KODAK HYPERFLEX Ready Imaging Technology
  • KODAK STACCATO Screening
