WOHLENBERG

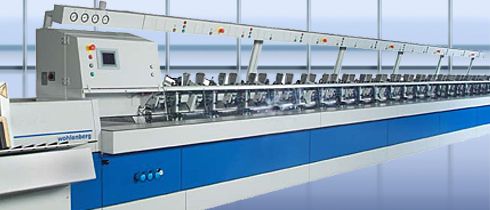

Sprinter sXL

Stand-alone or inline.

The gathering machine Sprinter sXL corresponds mainly with the Spinter s series, however the format range and the number of stations which can be installed were expanded.
The Spinter s/XL gathering machines are designed based on the modular concept. All elements can be combined individually and used both as stand-alone machines or inline, linked with a perfect binder. For vacuum generation a new system is applied: The Winjector. The winjector is an extremely compact suction-pump system for vacuum generation inside the suction module of the respective magazine. Based on the multi-step ejector principle the vacuum is locally generated from compressed air.

System extensions (optional):

  • Drive belts in magazine
  • Imagecontrol
  • Image control barcode reading
  • Universal criss-cross delivery
  • Manual feeding station with 1 or 2 pockets
  • Electrical disengaging clutch
  • Completely new, compact suction- pump system Winjector to optimize the process of creating vacuum, as standard
  • Motorized adjustment of the transport channel width, as standard
  • Control system for automatic run-up and run-down, as standard
  • Reliable and non-marking separation of the lowest layer due to the inclination of the stations
  • Upright gentle product transport in transport channel assisted by blow air. Spiralling upright for feeding into the perfect binder is no longer required
  • Mechanical speed, inline 1000-8000 cycles/h
  •  Stand-along with criss-cross delivery 1000-5000 cycles/h
  •  Product height 105- 485 mm
  •  Product width 75- 320 mm
  •  Number of stations 4 – 32(All details are product- and performance-linked)
