WOHLENBERG

Quickbinder

Quickbinder

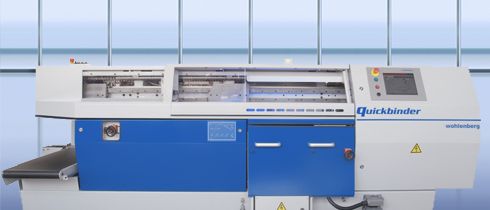

The Wohlenberg Quickbinder is not only intended for expanding smaller-sized companies making the jump to quality book binding applications, but also for large, industrial-scale book binding companies using the machine for the production of superior, high-quality samples and small editions.
Despite its minor overall size of 4.1 m length and 1,8 m width, the quickbinder combines all the performance features of a large perfect binder. Not only gluing techniques can be processed (hot melt, cold glue, PUR) but the quickbinder can also produce brochures with gauzing in one working process. With the wide format range from A6 to A3 (A4 landscape) and a maximum product thickness of 70 mm the quickbinder can be used for nearly all imaginable product tasks.

System extensions (optional):

  • Hotmelt, spine- and side gluing unit
  • PUR equipment with integrated barrel melter and heating station
  • Dispersion gluing unit for spine- and side gluing
  • Gauzing station
  • Lay-down device for linking to cooling conveyor
  • Extension of criss-cross delivery
  • Fully motorized adjustment of all important functions for setting book thickness and cover formats
  • Graphically interactive user interface Navigator SE
  • High-quality, high-performance 5,5 kW spine processing with main milling unit, multiple knife head and dust extraction system
  • Comprehensive gluing technology for selective processing of hotmelt, coldglue and PUR
  • Separate processing of spine- and side glue
  • Universal, easy-to-use rotary cover feeder for processing of 4, 6 and 8 page covers
  • Processing of gauzing material for producing book blocks or spine-taped brochures
  • brochures in one work process
  • Gentle criss-cross delivery
  • Mechanical speed: 500-2000 cycles/h
  • Product height: 110 – 430 mm
  • Product width: 105 – 320 mm
  • Product thickness: 2 – 70 mm
  • Number of clamps: 5





(All details product-and performance –related)
