Stacking Delivery A7D

High Performance Stacking Delivery for Signature and Book Block Applications

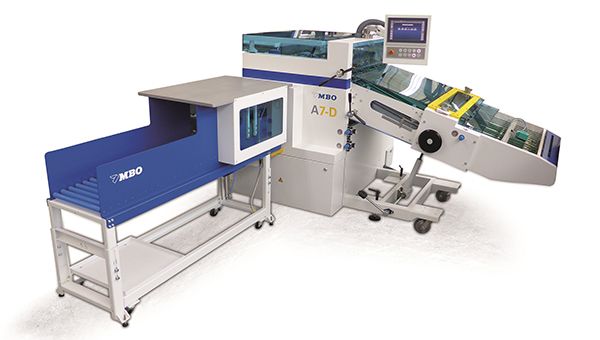

Stacking Delivery A7D


  • High quality stacking of signatures or book blocks
  • No marks and precise alignment
  • Integrated press with up to 2 tons of pressure
  • 8 x DIN A4 buffer capacity
  • Automated ejection of bad or misprinted sheets
  • Manual ejection of control sheets
  • Quick make-ready times

  • Ergonomic working height

  • Optional:
    - Job integrity systems (code verification)
    - Ejection of bad book blocks based on code reading
    - Spine glue for individual book blocks
    - Banding with paper and foil


  • Infeed Height: 380 mm–950 mm (15“–37 1/2“)

  • Sheet Format:- Width: max. 700 mm (max. 27 1/2“)- Length: 95 mm–330 mm (3 3/4“–12“)

  • Pile Height max.: 250 mm (9 3/4")

  • Production Speed max.: up to 1,200 cycles/h; up to 3-up;depending upon page count, paper weight and quality

  • Electrical Requirements: 400 V AC 3-phase; Power: 4,0 kW

  • Air Pressure Requirements: 6 bar; 350 l/min

  • Dimensions (mobile system):- Width: 3,500 mm (138")- Length: 2,600 mm (102")- Height: 2,000 mm (79")- Weight: approx. 1,200 kg



Subject to change without notice.
