Split and Merge Unit

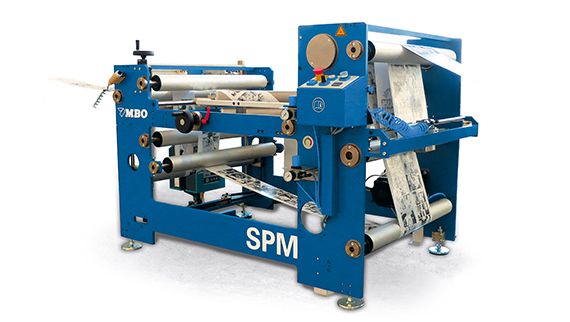

Split & Merge Unit

The SPM gives printers the ability to split and merge web printed products at high speeds and can be configured inline with a press or offline with a finishing system.
Equipment
  • Manual length- and cross register adjustment
  • Deflection of the paper web with air rolls
  • Integrated length cut device
  • Optional gully cut
Technical Data
  • Production Speed max.: up to 250 m/min (820 ft/min)
  • Web Width min./max.: 310–770 mm (12"–30")
  • Paper Quality: denpendent on the application
