Simple control for optimal operability.

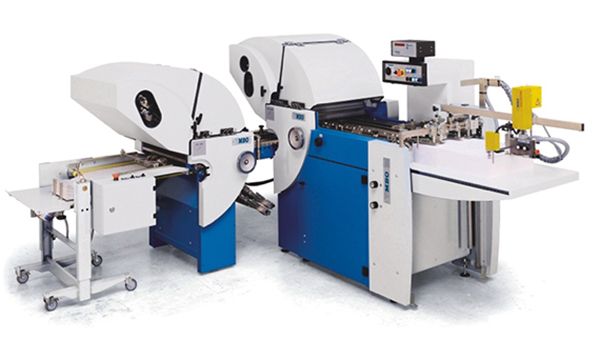

With the new buckle folding machine T 535 Efficiency MBO finally transfers all advantages of the Efficiency series to the 50 x 70 cm half format. Thus, the T 535 Efficiency is the perfect machine for small printing houses working with the formats 35 x 50 cm and 50 x 70 cm as well as bookbinderies running high circulations on this sector. Good quality for low budgets: With the T 535 Efficiency, MBO makes the excellent price/performance ratio of the Efficiency series also accessible to users working with half format. This applies of course also to the other benefits: Well-proven MBO components like quick setting elements, MS Control, belt drive, spiral foldrollers and slitter shafts with bearing plugs provide a trouble-free production on the highest level. The stable, robust design guarantees the particular long-life cycle of the machine.

Learn more...

T 535 Efficiency proves that performance and quality are not a matter of purchase price, but of the manufacturer‘s standards. And MBO‘s standards are so high that we made every effort to transfer the well-proven Efficiency advantages one on one from the medium format to the half format 50 x 70 cm. And successfully, too – plus with a new design.



Benefits
  • Foldroller quick change device saves timeconsuming demounting of many parts, e.g. when inserting HIGH-GRIP foldrollers or segmented foldrollers for glue folding

  • Pile feeder F 535 with electronic height adjustment for faster lifting and lowering ofthe table


  • High efficiency thanks to an attractive cost/performance ratio
  • Simple construction for optimal operability
  • New attractive design
  • Shorter minimum format 15 x 15 cm with feeder head

Features
NIRO buckle plates
 The marking-free NIRO buckle plates with central sheet stop fine adjustment are equipped with swing sheet deflectors. To swing the deflector, the buckle plate only must be lifted a few centimeters. The through sheet stop in buckle position 1 ensures highest precision at maximum speed.

Feeder head VACUSTAR
 This feeder head is used with pile feeders for the Efficiency models. The vacuum control reaches outputs of up to 40,000 cycles per hour for small formats.

Belt drive system
 Advantages: extremely quiet operation and long maintenance-free periods. Thanks to the auto-tensioning elements, controlling and readjusting is no longer necessary. Low follow-up and operational costs make the MBO belt drive an especially efficient long-term solution.







Standard equipment and options

Equipment:

  • MS Control
  • Pile feeder F 535
  • Sheet infeed via suction wheel
  • Sheet alignment via ball rail
  • Anti-static lattice-type alignment table
  • 4 NIRO buckle plates with swing deflectors
  • Through sheet stops in buckle 1
  • Low maintenance and low noise belt drive
  • Spiral foldrollers with standard PU roller coating
  • Stainless slitter shafts, quick exchange thanks to bearing plugs
  • Safety device above the slitter shafts, electronically protected
  • Scoring, perforating and cutting devices for standard jobs
  • Stream delivery A 56


Options:

  • Feeder head VACUSTAR for pile feeder
  • Continuous pile feeder R 535
  • HIGH-GRIP spiral foldrollers
  • Foldroller quick change device
  • Extension to 6 NIRO buckle plates
  • COMBIPLATE combi buckle plates
  • Inner width adjustment for COMBIPLATES
  • Electromechanical stopper switch
  • Photocell at the outfeed for counting
  • WINPLATE gatefold plate
  • Preparation for gatefold plate in folding unit II
  • Noise insulation
  • Front cover for folding unit I
  • Glue fold device
  • Double stream device
  • X-folding unit II (4X), 53 cm
  • X-folding unit III (44X), 53 cm incl. transfer table
  • Gatefold brushes for X-folding unit III, only applicable for type 44X
  • Transfer table from folding unit I to folding unit II (e.g. for later order of a folding unit II for 44X configuration)
  • Strip trimming device
  • Edge trimming device
  • Multiple perforating device
  • Punch perforating device
  • Small format device
  • Various peripheral units
  • Various deliveries

We inform users of MBO buckle folders with MS/MC control, series T460/B118, T530/B21, T535E, B21-IFF, B26E, B30E/B30A and T700P-T1420P that a modification kit which includes an update of the safety status is available. For further information, please contact: +49 (0) 7191 / 46-500 or  milica.damcevska@mbo-folder.com .
