B26 / B30 Efficiency

MBA

      B26 / B30 Efficiency

            Unlimited in variability and efficiency

Best cost/performance ratio

As Efficiency models, the B26 and B30 present themselves efficiently and with good quality results – perfect for standard production. With additional or alternative equipment features, the quality, performance and process stability of your buckle folding machine may even be further extended.
VIVAS extension: As an alternative to the conventional suction wheel/ball rail version, the VIVAS infeed and alignment system with its high conveying power ensures smooth infeed and motion.
Double stream device: Greater output, greater efficiency and greater savings – that‘s the bottom line with the double stream extension.

Learn more...

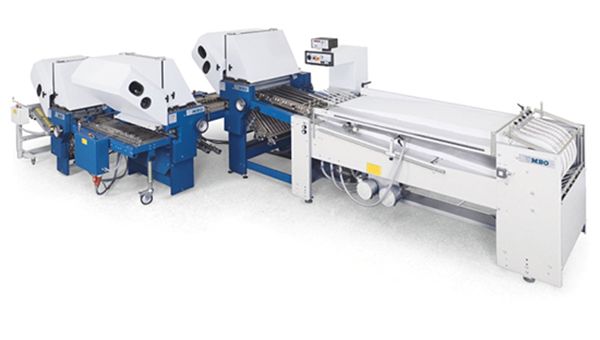

The buckle folding machines B26 Efficiency and B30 Efficiency are perfectly suited for processing standard jobs. But standard products need to be processed in good quality, too. The B26 Efficiency and B30 Efficiency optimally meet this requirement since, with the high quality and reliable MBO features like spiral foldrollers or belt drive, it combines efficiency and quality in one machine. Another advantage: The design of the B26 Efficiency and B30 Efficiency ensures easy and safe operation, even without computer knowledge.
Belt drive for long maintenance-free lifetime and smooth production
Extremely quiet operation for relaxed working
Auto-tensioning elements ensure that controlling and readjusting are no longer necessary
The B26 and B30 belong to the Efficiency Series. It is the solution for high (standard) print runs and rare changeover – ideally suited for enterprises processing jobs with more or less identical folding types.


Best cost/performance ratio

Benefits
  • High efficiency thanks to an attractive cost/performance ratio
  • Well-proven MBO components for constant quality and long lifetime

  • Simple construction for optimal operability
  • Simple machine controller MS
  • Low maintenance

Features
Rear slitter shafts
The rear slitter shaft at the exit of the folding unit allows scoring, perforating and cutting jobs, strip trimming, edge trimming and punch perforation in perfection. The plug bearings guarantee time saving for change and changeover.
Suction wheel/ball rail
Sheet infeed and sheet alignment with suction wheel and ball rail are a standard equipment of all MBO machines of the Efficiency series.
NIRO buckle plates
 The marking-free NIRO buckle plates with central sheet stop fine adjustment are equipped with swing sheet deflectors. The through sheet stop in buckle position 1 ensures highest precision at maximum speed.







Standard equipment and options



Equipment:

  • Spiral foldrollers with standard PU roller coating
  • MS Control
  • Continuous feeder
  • Sheet infeed via suction wheel
  • Sheet alignment via ball rail
  • Anti-static lattice-type alignment table
  • 4 NIRO buckle plates with swing deflectors
  • Through sheet stops in buckle 1
  • Stainless slitter shafts, quickexchange thanks to plug bearings
  • Scoring, perforating and cutting devices for standard operations
  • Electromechanical stopper switch
  • Mobile stream delivery A76


Alternative/additional equipment:

  • Pile feeder with feeder head VACUSTAR
  • FP760/95 palletised feeder with VACULIFT III and pile lowering device FLS (only for B30)
  • MC Control (only for B30)
  • VIVAS
  • Extension to 6 NIRO buckle plates
  • COMBIPLATE combination buckle plates
  • Gatefold plates
  • Glue fold device
  • Double stream device
  • Noise insulation
  • Strip trimming device
  • Edge trimming device
  • Multiple perforating device
  • Punch perforating device
  • Various peripheral units
  • Various delivery systems

We inform users of MBO buckle folders with MS/MC control, series T460/B118, T530/B21, T535E, B21-IFF, B26E, B30E/B30A and T700P-T1420P that a modification kit which includes an update of the safety status is available. For further information, please contact: +49 (0) 7191 / 46-500 or  milica.damcevska@mbo-folder.com .
