BAUMANN-WOHLENBERG

      BSB L

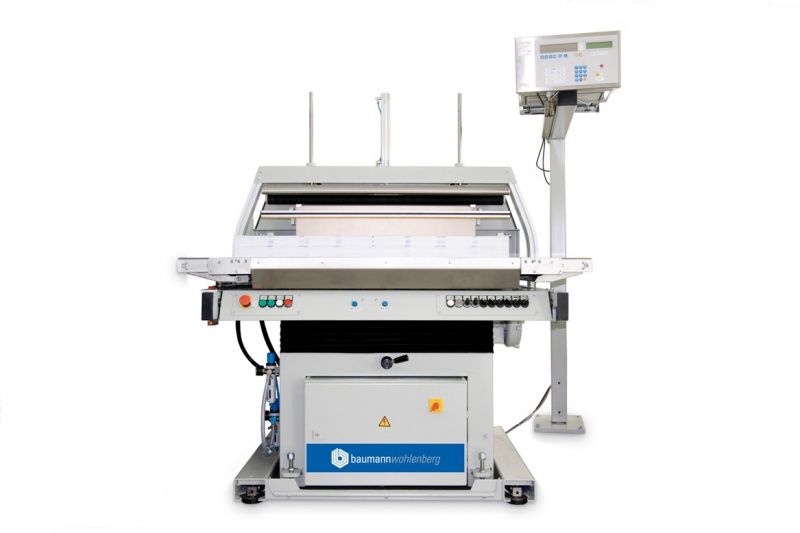

Baumann BSB L

All model "L" automatic joggers are equipped with a pneumatic air-expulsion roller with clamping device.

Features

  • The table of the automatic jogger is designed with a stainless steel air-table
  • Side flap with pneumatic tilt
  • Tiltable both left and right
  • Variable jogging intensity
  • The speed of the air-expulsion roller can be varied to suit different materials
  • Air expulsion can be selected for one or two times

Options

  • Pneumatic attachable sheet divider for smaller sheets
  • Cut outs for grippers to automatically remove lifts
  • Unloading through the back after air expulsion
  • Ream stabilizer
  • Count by weight scale mounted under the automatic jogger

Advantages

  • Highly accurately aligned layers
  • Increase in productivity


BSB 2 L BSB 3 L BSB 5 L
Format [mm] 640 x 920 800 x 1140 900 x 1300
Max. ream height [mm] 160 160 160
BSB 6 L BSB 7 L BSB 8 L
Format [mm] 1050 x 1450 1250 x 1650 1320 x 1850
Max. ream height [mm] 160 160 160
BSB 10 L
Format [mm] 1525 x 2050
Max. ream height [mm] 160
