BAUMANN-WOHLENBERG

      BFS

            (1 and 2 buffer-spaces)

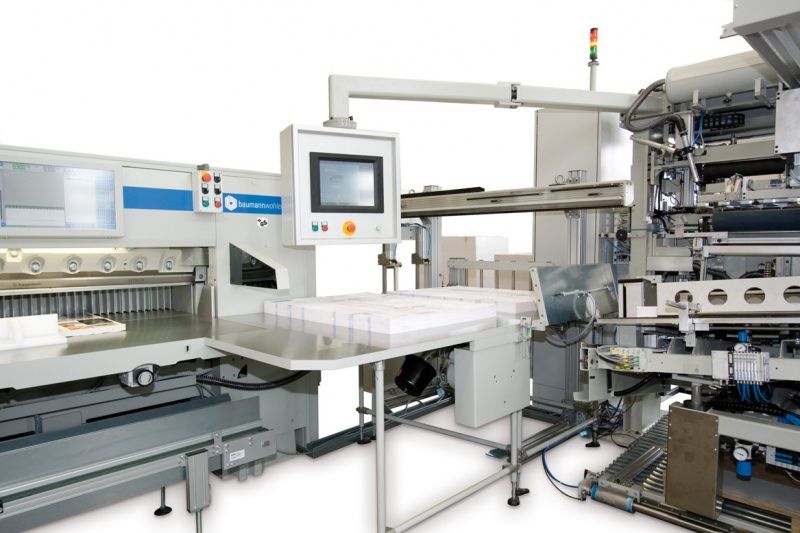

Baumann BFS

Gripper transport systems take the jogged reams out of the automatic jogger and transport them towards the cutter. BFS can be equipped with one or two buffer-spaces. This is the "classic rear-table feeding". The layers are transported in a "straight-forward movement". BFS is very efficient and dynamic. It is able to transport the layer directly towards the cutter without any intermediate stops.

Possible combinations

  • Combination with automatic cutting (BDG)
  • Combination with automatic jogging (BASA)

Advantages

  • Very quick feeding of the cutter
  • Higher layers can be processed when feeding the cutter via the rear-table
  • Cost-saving, increasing the productivity
  • Highly precise and highly dynamic
Format max. [mm] 770 x 1070 1050 x 1450 1260 x 1670
Cutting width [mm] 1150/1320 1680 1680 with long table or 2250
Buffer-spaces 1 or 2 1 or 2 1 or 2
Number of grippers 2 3 3
Format max. [mm] 1300 x 1850 1525 x 2050
Cutting width [mm] 2250 2250
Buffer-spaces 1 or 2 1 or 2
Number of grippers 3 3
