Glunz & Jenson

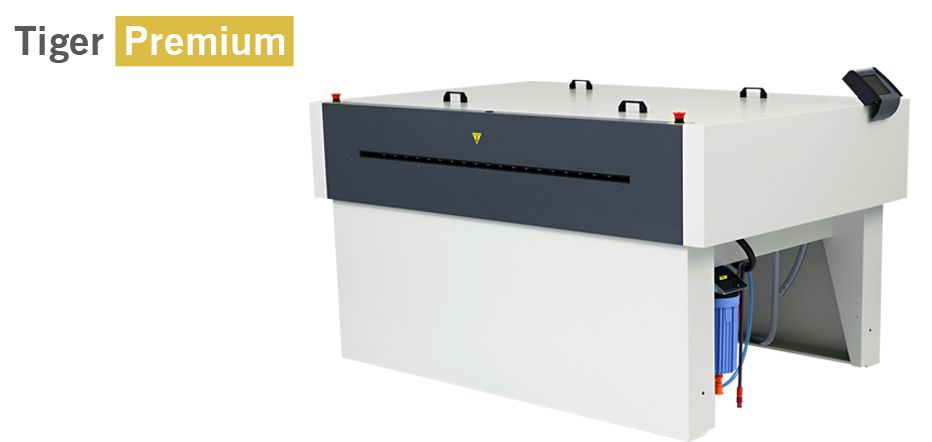

      Tiger 86/125 Premium

Trouble-free cleaning and maintenance

An easy-lift top cover provides access to snap lock mounted brushes, rollers, spray bars and guides, and they are replaced in minutes – without the use of tools or the need to re-calibrate.

Touch screen controls

Easy to master graphical touch screen control panel with optional native language plug-in and built-in remote support and diagonostics.

The GNUC II control panel is a fully graphical touch screen display which is used on many Glunz & Jensen manufactured products.

Quick fill pump

Fill the developer section with developer without lifting the heavy developer containers by pumping the content of a container on the floor straight into the developer section at 10-12 liters/minute (2.6-3.2 US gallons/minute).

Container Level Probes

Unattended processing is supported by container level probes which monitor the levels in containers with replenish, finisher and waste and alerts the operator in case of low/ high level in a container

Approved and accredited

You will be safe with our products. We have designed and build the products according to the current standards and an independent institute has inspected and approved the products for CE safety standards, UL, c/UL and RoHS. All certificates are available upon request.

Developer filter

Keep your developer clean and avoid print imperfections caused by deposits on the offset plate.

Online interface

Safe unattended production. The CtP will only make a new plate if the processor is able to accept it. In the case of a unforeseen event in the line which prevents further processing, the condition is signaled back to the CtP which will stop further plate making. Just order the online interface It is a mechanical AND electrical adaption to the CtP for online installations

Water saving

Reduce your water consumption with more than 85% by adding the water saving option which circulate/re-use a most of the water.

Plate stacking

Several models of stackers are available, including everything from a convenient compact stacker to a heavy-duty VLF stacker, meeting your every plate stacking need.

Delivery table

The delivery table manages the processed plates while the operator feed plates to the processor. It is mounted at the processor exit and collect plates as they have been processed. For automatic online configurations it is recommended to use a stacker instead, which can handle a higher capacity.

Feed table

Easy feeding of plates into the processor when it is used in an offline or manual configuration by adding a table surface/top for resting plates onto when they are fed into the processor. For inline configurations you can use a conveyor to connect with the CtP, instead of a feed table.

Preventive Maintenance Kits

The necessary original spare parts and step-by-step instructions to complete the recommended annual maintenance on you plate processor, to keep it in top running condition.
