KODAK

      TRILLAN SP Thermal Plate

            Outstanding Productivity and Performance

Low Chemistry Usage

Low replenishment plate solution that delivers long processing cycles and reduces overall chemistry consumption.
Minimizes environmental impact while reducing costs.

Robust On-Press Performance

Excellent chemical resistance and durability.
Unbaked run lengths up to 500,000 impressions, even in harsh chemical environments.
Up to 125,000 impressions for UV applications.

Fast Imaging and Processing

Get to press faster with fast imaging and processing.
Removing preheating and potentially postbaking improves turnaround time and efficiency.

Ideal for a Variety of Applications

Ideal for small and large commercial sheetfed and commercial publication (book) applications and certain heatset web, offset packaging and UV print applications.

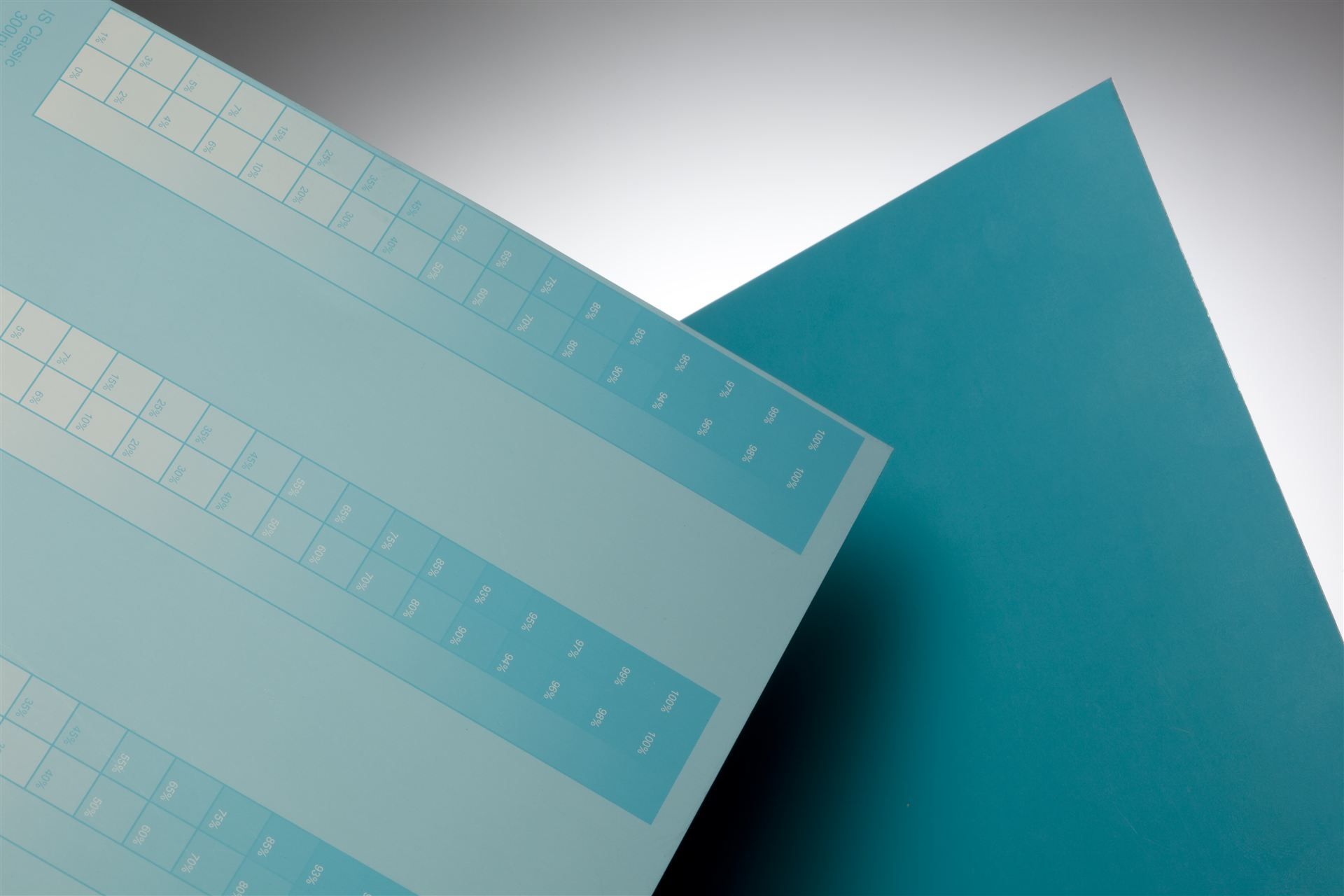

Plate

Non-ablative, negative working, thermal digital plate with wide operating latitude; for long runs and resistance to aggressive press chemistry such as UV inks and blanket washes (with optional postbake)

Application

A variety of small and large commercial sheetfed and commercial publication (book) applications and certain heatset web, offset packaging and UV print applications

Spectral sensitivity

800 - 850 nm

Laser energy required

85 - 120 mJ/cm 2  Dependent on imager type, configuration and resolution.

Resolution

1% to 98% @ 300 lpi Dependent upon capability of imaging device.

FM capability

20-micron stochastic Dependent upon imaging device capabilities and screening algorithms. For optimum FM performance, Kodak recommends  KODAK STACCATO Screening on  KODAK SQUARESPOT Imaging Technology Devices.

Run length

Up to 500,000 impressions unbaked. Up to 125,000 impressions for UV applications. Dependent upon image resolution, press, press chemical, ink and paper conditions.

Safelight

Up to one hour under standard office lighting, up to four hours is possible under Encapsulite C20 UV-cut and up to six hours for G10 yellow safelights
