KODAK

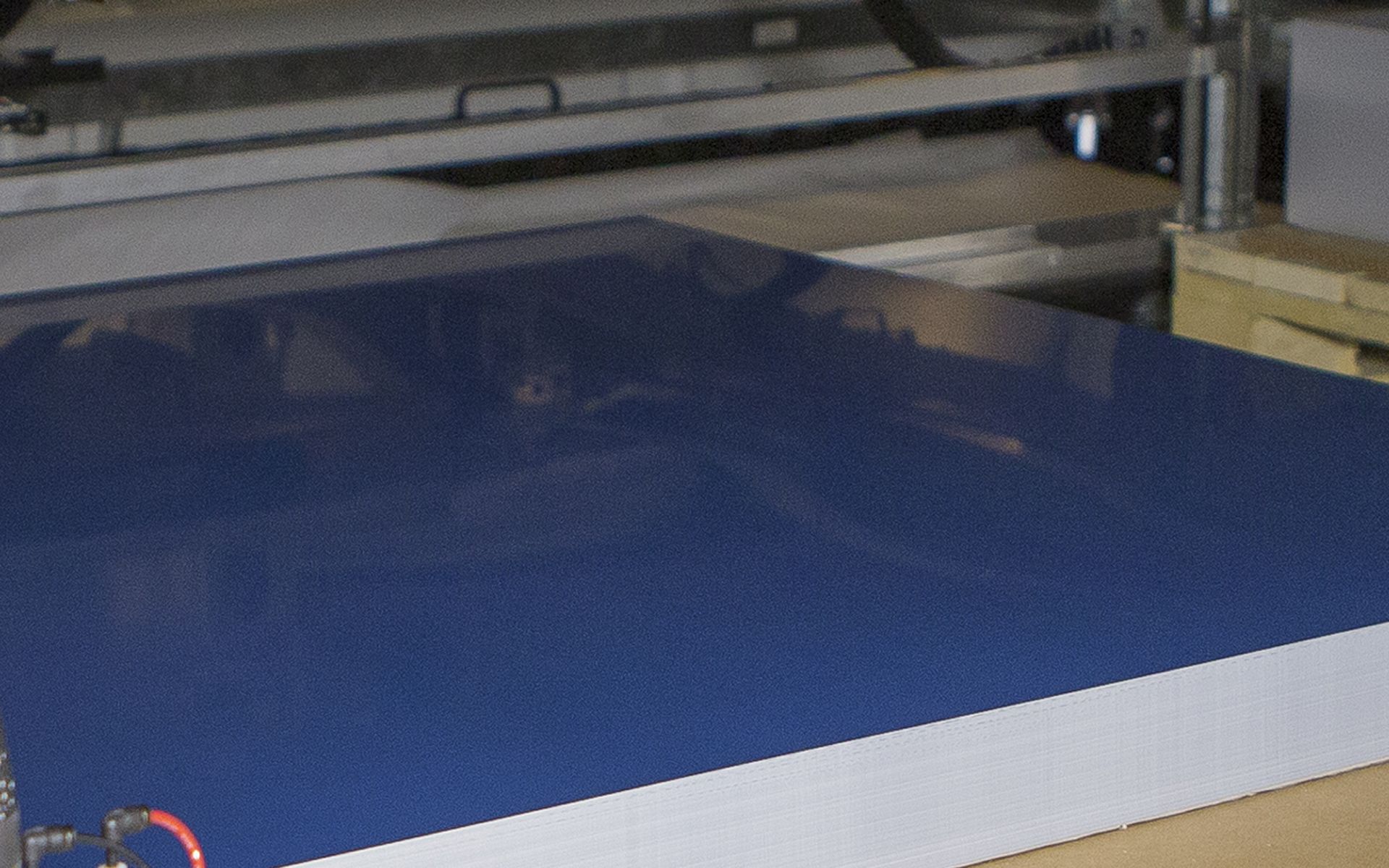

      ELCTRA MAX Thermal Plate

            The High-Performance, No-Compromise Plate

Maximum Resolution

Deliver outstanding print quality and color with 10-micron FM capability, 1-99% @ 450 lpi AM
Extremely sharp detail to impress both print buyers and consumers

Maximum Chemical Resistance

Achieve up to 150,000 impressions unbaked for UV, H-UV and LED-UV applications
Excellent chemical resistance and on-press durability - without postbaking

Maximum Unbaked Run Lengths

Up to 500,000 impressions for web applications and 350,000 for sheetfed
Improve productivity on press
Save the energy and cost of baking

Maximum Sustainability

Long developer cycles and low chemistry usage.
Use your existing processing equipment; no need to buy an expensive, specialized processor.
Lower energy costs by removing ovens.

Plate No preheat, positive-working thermal plate with wide operating latitude; optional postbake
Application Offset packaging applications; UV, H-UV and LED-UV print applications; high-quality medium to long run sheetfed and heatset web / coldset web applications
Spectral sensitivity 800 – 850 nm
Laser energy required 90 – 110 mJ/cm2 Dependent on imager type, configuration and resolution
AM Resolution 1 – 99% @ 450 lpi Dependent on capability of imaging device
FM Resolution 10-micron stochastic Dependent on imaging device capabilities and screening algorithms. For optimum FM performance, Kodak recommends KODAK STACCATO Screening and KODAK SQUARESPOT Imaging Technology devices.
Run length
  • Up to 500,000 impressions unbaked for web applications
  • Up to 350,000 impressions unbaked for sheetfed applications
  • Up to 150,000 impressions unbaked for UV and H-UV applications
  • Can be postbaked for longer runs and more demanding press conditions

Dependent on image resolution, press, press chemical, ink and paper conditions.

Safelight None required – daylight handling
