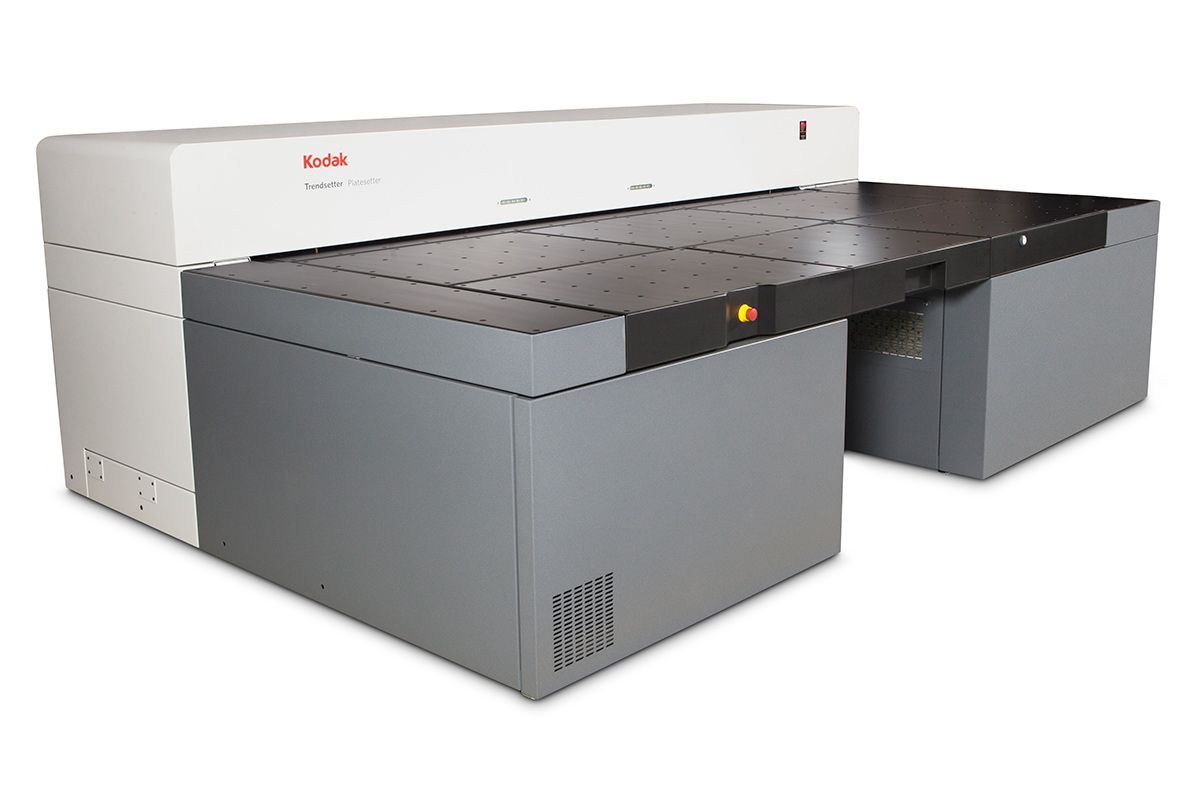

KODAK TRENDSETTER Q2400/Q3600 PLATESETTERS
TRENDSETTER Q2400/Q3600 Platesetters are now available with a faster speed option that lets you image up to 40.2 plates per hour. Built with the same award-winning thermal imaging technology and advanced engineering as the rest of the TRENDSETTER range, these platesetters deliver excellent quality and reliability in VLF plate making. This manual model can help you increase throughput by imaging large-format plates up to 1600 mm x 2083 mm.
RESOLUTION
Standard: 2400/1200 dpi
Optional: 5080/4800, 2540/1270 dpi
NEW, FASTER SPEED
Up to 40.2 plates per hour (1,030 x 800 mm plate)
Up to 31.0 plates per hour (2,083 x 1,600 mm plate)
CONTROL ON THE GO
Attend to your CTP devices from wherever you are, using only a mobile phone, with Kodak’s Mobile CTP Control App. With help from its timely notifications and alerts, you'll soon be monitoring devices, managing queues and running multiple CTPs – from anywhere.
Available now for newer models of KODAK MAGNUS, ACHIEVE, and TRENDSETTER Platesetters, with support for older models coming soon.
HIGH PERFORMANCE. LOW IMPACT.
KODAK SONORA Process Free Plates can save you money and space, while eliminating chemistry and reducing plate processor costs and waste, as well as reducing water usage.
| General Specifications | |||
|---|---|---|---|
| Technology | 830 nm thermal imaging platesetter, semi-automatic, external drum | ||
|
Q400 Platesetter
|
Q800 Platesetter
|
||
| Performance Specifications | |||
|
Throughput at 2400 dpi for plate size
1,030 x 800 mm |
F speed = 20.1 plates per hour
X speed = 24.6 plates per hour W speed = 40.2 plates per hour |
|
|
|
Throughput at 2400 dpi for plate size
1,804 x 1,422 mm |
F speed = 13.7 plates per hour
X speed = 17.6 plates per hour W speed = 31.0 plates per hour |
||
|
Throughput at 2400 dpi for plate size
2,083 x 1,600 mm |
F speed = 12.3 plates per hour
X speed = 15.9 plates per hour W speed = 28.0 plates per hour |
||
| Repeatability | ± 8 microns between two consecutive exposures on the same plate left on the drum | ||
| Accuracy | ± 35 microns accuracy of image size and shape | ||
| Registration | ± 25 microns between image and plate edge at registration points | ||
| Workflow connectivity |
Standard XPO TIFF Downloader Software (included) connects to most third-party workflow systems.
KODAK PRINERGY Workflow, and connection to third-party workflow systems. |
||
| Imaging specifications | |||
| Resolution |
Standard: 2400/1200 dpi
Optional: 2540/1270 dpi |
||
| Screening |
450 lpi max line screen
Optional: 25- or 20- micron KODAK STACCATO Screening |
||
| Maximum plate size: around drum x along drum | 1,422 x 1,804 mm |
1,600 x 2,083 mm
|
|
| Minimum plate size: around drum x along drum |
394 mm x 394 mm
|
394 mm x 394 mm
|
|
| Maximum image area: around drum x along drum | 1,408 x 1,804 mm |
1,586 x 2,083 mm
|
|
| Physical characteristics | |||
| Size (H x W x D) |
1200 mm x 3225 mm x 2131 mm |
||
| Weight | 1,760 kg | ||
