KODAK

      MAGNUS 800 PLATESTtER

            High-Performance plate making with top image quality

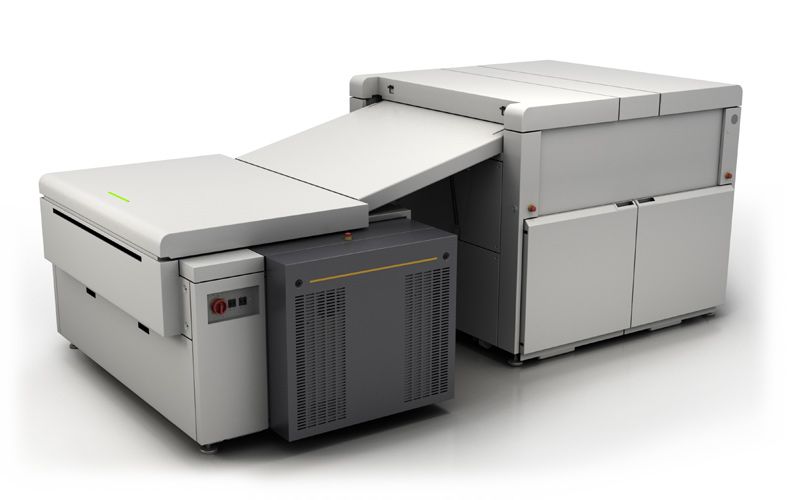

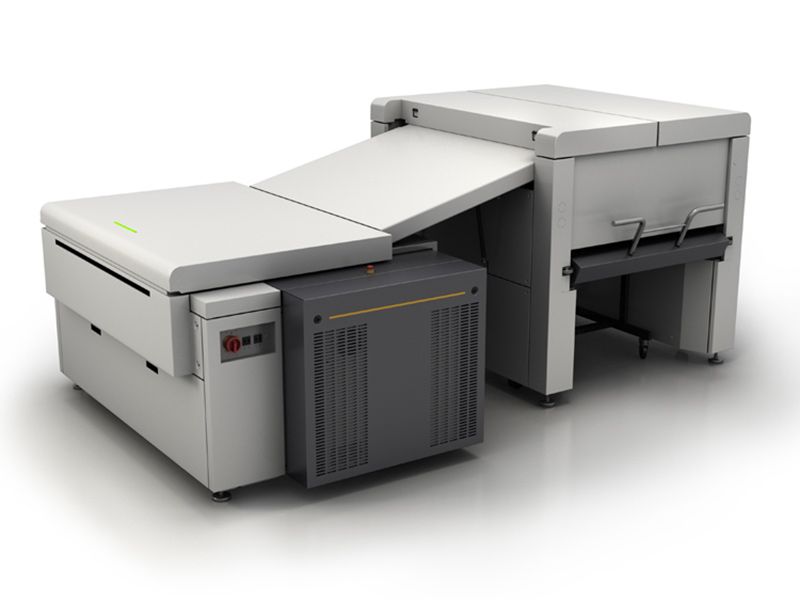

MAGNUS Q800 Platesetter

KODAK MAGNUS Q800 Platesetters, with advanced features, provide exceptional productivity and efficiency to meet the needs of both small and large commercial printers. Industry-leading speeds up to 62 plates per hour, a modular design for easy scalability, and various plate options.

Seamless integration with KODAK Solutions

The MAGNUS Q800 Platesetter is tightly integrated with KODAK Workflow Solutions, KODAK Processing Equipment and KODAK Plates, enabling a complete automated prepress solution.

Time Tested Technology

Benefits of Thermal Platesetters

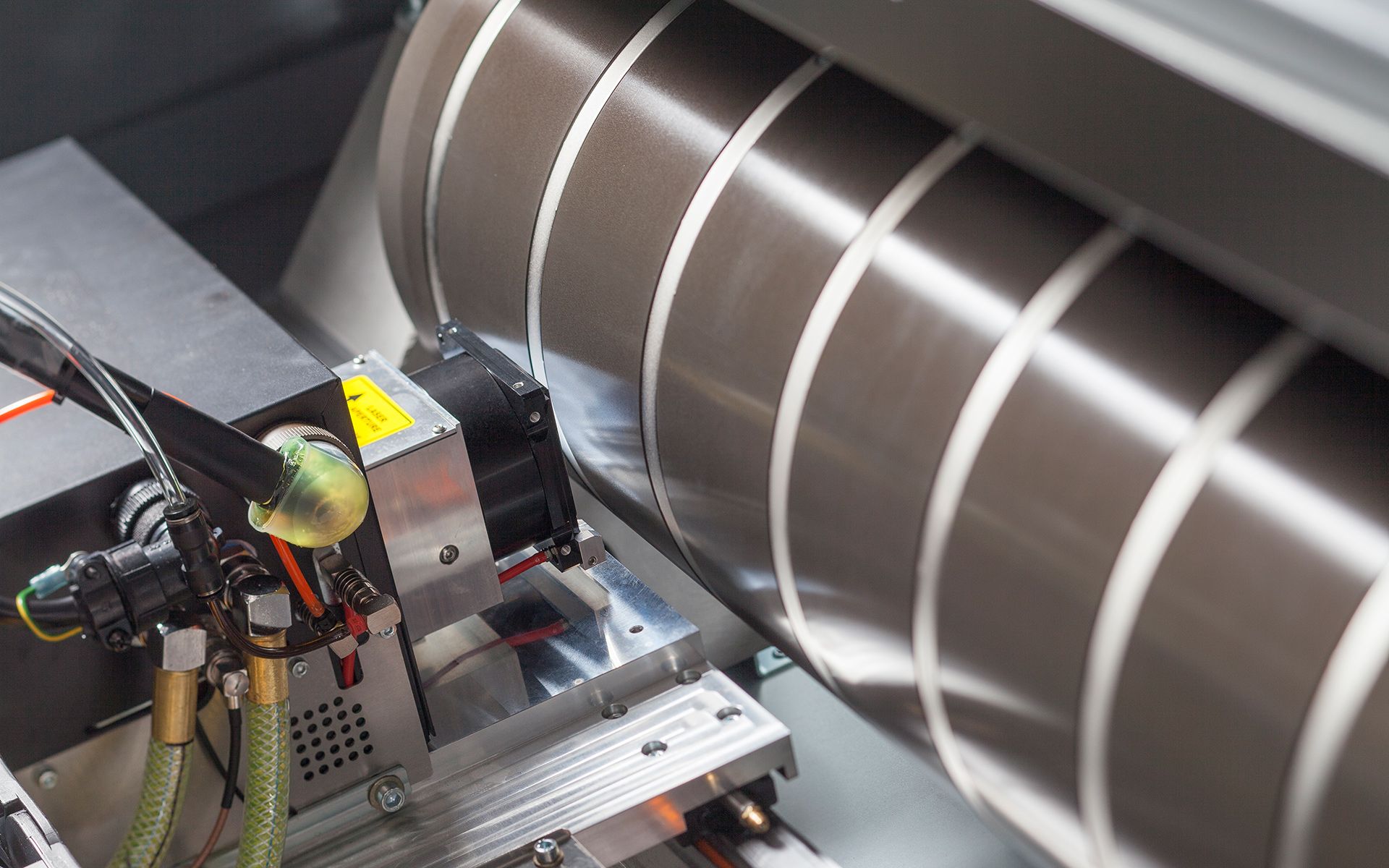

SQUAREspot Imaging Technology for accurate and stable imaging
Low Environmental Impact with KODAK SONORA Process Free Plates

General specifications
Technology 830 nm thermal imaging platesetter, semi-automatic, external drum
Automation options
  • ContinuousLoad (standard): Semiautomated; as one plate is imaged, another is placed on standby for automatic loading as soon as the drum unloads.
  • Single-cassette unit (SCU) option: Fully automated; holds up to 100 plates of the same size and thickness with slip sheets. Standard: right access; available with optional left access.
  • Multi-cassette unit (MCU) option: Fully automated; holds up to 500 plates in 5 cassettes, each containing up to 100 plates of the same size and thickness with slip sheets. The required cassette is automatically selected according to the job definition. Empty cassettes can be reloaded while the platesetter is running. Standard: right access; available with optional left access.
  • Automatic Pallet Loader (APL): Holds one pallet of up to 600 plates of the same size and thickness with slip sheets. Standard cassette tray for up to 100 plates enables a secondary plate size online that is different from the pallet plate size. Option to bypass the automatic plate loader by inserting plate directly into the platesetter from the loading conveyor. Standard: right access; available with optional left access. (Consult your KODAK Plates representative for a current list of plates qualified for the APL.)
Integrated punch
  • Up to 10 customized punch heads. Select from a list of punches qualified for MAGNUS Q800 Platesetter.
  • Optional automatic punching is operated according to press profile selected from the KODAK Workflow.
  • Punch is available on the front edge of the plate only.
Performance specifications
Throughput at 2400 dpi 1,2
  • Standard: F speed = 28 plates per hour
  • Optional: X speed = 45 plates per hour
  • Optional: Z speed = 62 plates per hour
Repeatability ± 5 microns between two consecutive exposures on the same plate left on the drum
Accuracy ± 20 microns between 2 plates imaged on the same MAGNUS Platesetter, at largest plate size
Registration ± 25 microns between image and punches, when customer punches are used (at largest plate size)
Workflow connectivity
  • Standard XPO TIFF Downloader Software (included) connects to most third-party workflow systems.
  • KODAK PRINERGY Workflow and connection to third-party workflow systems.
Imaging specifications
Resolution
  • Standard: 2400/1200 dpi
  • Optional: 2540/1270 dpi
Screening
  • 450 lpi max line screen
  • Optional: 25-, 20- or 10- micron KODAK STACCATO Screening
Maximum plate size: around x along drum 950 x 1,163 mm
Maximum image area size: around x along drum 938 mm x 1,163 mm
Minimum plate size: around x along drum 330 mm x 305 mm
Minimum image area size: around x along drum 318 mm x 305 mm
Physical characteristics
Size (H x W x D) / Weight
  • Standard: 113 x 231 x 166 cm / 1040 kg
  • SCU: 146 x 231 x 433 cm / 2076 kg
  • MCU: 146 x 369 x 433 cm / 2802 kg
  • APL: 146 x 231 x 470 cm / 2254 kg

1  Imaging time is dependent on media sensitivity and screening type. All values are for media sensitivity of 120mJ/cm 2 , screening of 175 lpi and plate width of 1,030 mm (40.55 in.)

2  Tested with KODAK Workflow.

The platesetter is a Class 1 Laser Product and fully complies with EN60825-1 and US Federal Regulations 21 CFR 1040.10 - CDRH.
