KODAK DIGIMASTER HD125 / HD150 / HD300

            Digital Production Systems - Exceptionally Dependable

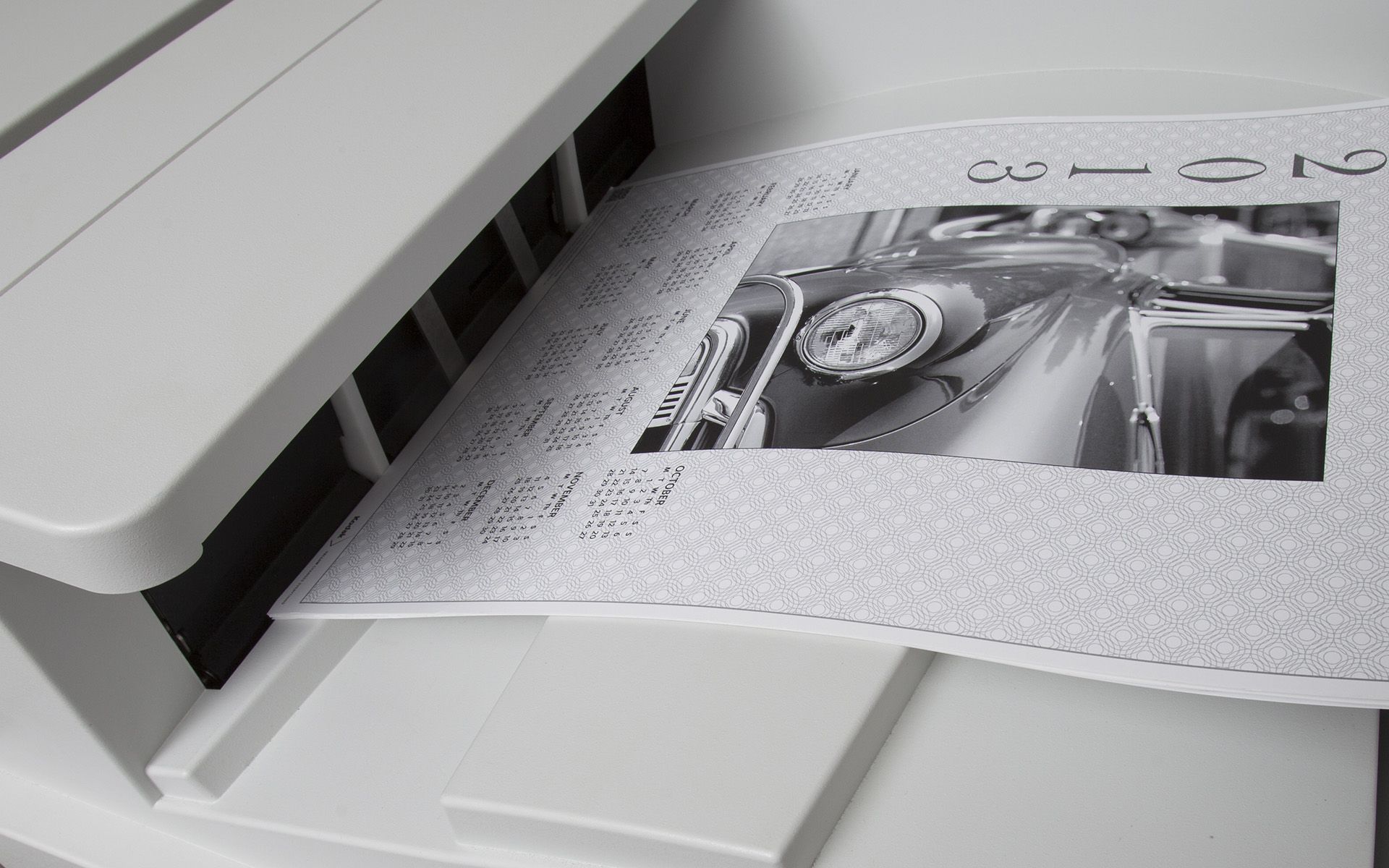

Improved Image Quality

Get enhanced image quality using the new H1 toner and improved imaging components and software. Higher toner yield from smaller particle size (one quarter the size of competitive systems) and imaging system optimization means more efficient production.

The Secret of Great Reliability

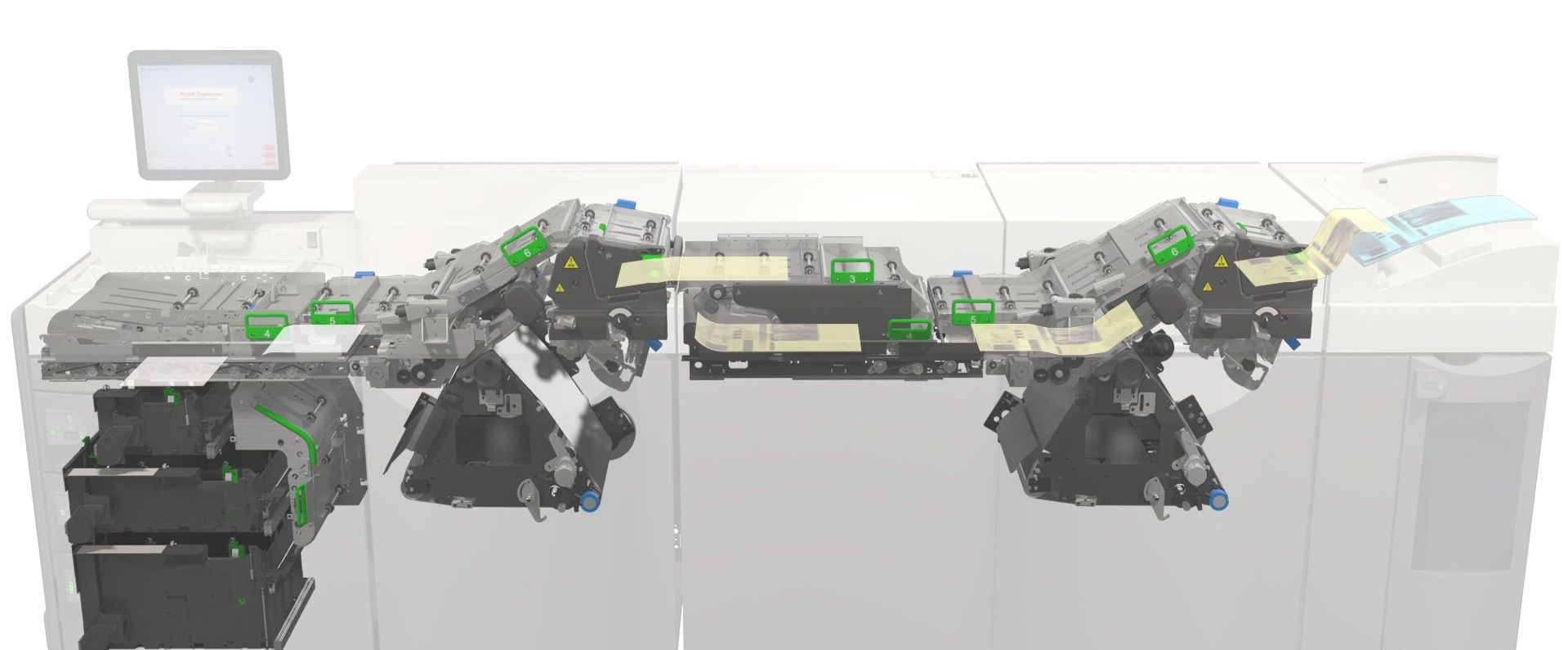

A unique paper path design is one of the DIGITMASTER HD Systems' secrets of high-performance printing. A proven paper feed and short, straight, waist-level path through the imaging and fusing modules-without any low vertical points-keep paper movements on an even keel, minimizing paper jams. Fewer jams translate to optimized production.

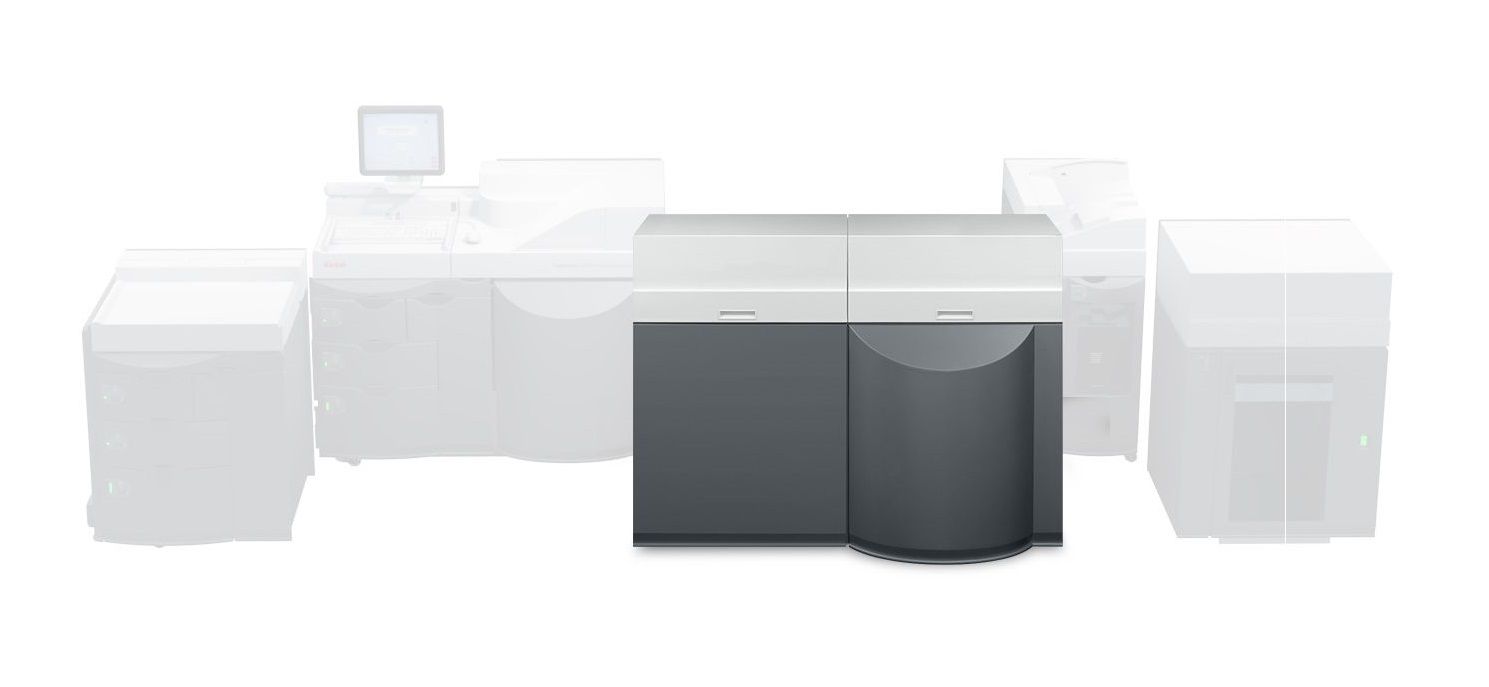

KODAK DIGIMASTER Productivity Module

A KODAK DIGIMASTER Productivity Module will upgrade your current HD125 or HD150 System to full HD300 System functionality and productivity, while using your original engine, feeding and finishing accessories.

HD125 Datasheet HD150 Datasheet HD300 Datasheet KODAK DIGIMASTER Digital Production Platform Brochure(Engilish) KODAK DIGIMASTER Digital Production

Base configuration
Print engine with three paper drawers
Operator control interface with flat panel monitor display
System control subsystem
AP *  Print Production Software 8.01
Print Engine
Print Rate Speed

HD125:125 ipm (A4/letter/legal) 104, 83, 62.5 ipm (A3/ledger) for wider formats

HD150: 150 ipm (A4/letter/legal) 125, 100, 75 ipm (A3/ledger) for wider formats

HD300: 300 ipm (A4/letter/legal) 150 ipm (A3/ledger)

Resolution: 600 dpi
LED imaging technology

HD125: up to 4.2 million impressions per month

HD150: up to 5 million impressions per month

HD300: up to 8 million impressions per month

Paper sizes
Top drawers In-track
  • Standard: 203 - 229 mm (8 - 9 in.)
  • With extended paper size option : 178 - 229 mm (7 - 9 in.)Cross-track
  • Standard: 250 - 356 mm (9.84 - 14 in.)
  • With extended paper size option : 210 - 364 mm (8.27 - 14.33 in.)
Middle and lower drawers In-track
  • Standard: 203 - 457 mm (8 - 18 in.)
  • With extended paper size option : 178 - 470 mm (7 - 18.5 in.)Cross-track
  • Standard: 250 - 356 mm (9.84 - 14 in.)
  • With extended paper size option : 210 - 364 mm (8.27 - 14.33 in.)
Paper drawer capacity (based on 80 g/m 2 /20 lb. bond)
Top and middle drawer: 1,000 sheets
Lower drawer: 2,000 sheets
Print engine includes three paper drawers with 4,000 sheet total capacity (20 lb. bond). Option to expand to nine drawers with 12,000 sheet total capacity (20 lb. bond).
Paper weight
60 - 200 g/m 2  (16 lb. bond to 110 lb. index)
60 - 266 g/m 2  (16 lb. bond to 150 lb. index) with enhanced feed mode option
Primary tray: up to 3,000 sheets (straight or offset stacking)
Stitching: 2 - 100 sheets (based on 20 lb. bond); variable stitch length
Size Height: 163 cm (64 in.)Length: 221 cm (87 in.)Depth: 119 cm (47 in.)
Operator control interface
Flat panel monitor display
Complete system components control; mouse/keyboard
System control subsystem
System type Five9NS System T3105K1 (530-0001-01)
Processor Intel Pentium G3420 (3.2GHz, 3MB Cache, 2C/2T, LGA1150, 53W, embedded)
Storage subsystem (2) Internal 3.5” drive bays
Memory (1) 4GB (512MB x 72-bit, 1Rx8) PC3L-12800, CL11, ECC DDR3-1600 UDIMM, 1.35V
Hard drives (1) 1TB 7200RPM, 3.5", 6Gbps (SATA III), 128MB Cache, internal
Optical drive Half-height SATA DVD-RW, 24x, black
Power supply 350W, ATX12V, 80+ Gold
Operating system Solaris 10
Document buffer
10,000 page capacity
Automatic page level recovery
Queues print-ready jobs for minimal inter-job delay
Page Description Languages
Adobe PostScript and  Adobe PDF
TIFF standard
HP-PCL 6 (optional)
Connectivity/supported datastreams
Supported environments
Microsoft Windows 7/ Vista/XP operating systems
Macintosh operating system OS X
H1 Toner: standard black Yield 164,000 images per bottle based on 6% coverage (A4/letter)
H1 Developer: Yield 1.2M images (A4/letter)
M1 Toner: MICR Yield 110,000 images per bottle based on 6% coverage (A4/letter)
M1 Developer: Yield 600K images (A4/letter)
Input Optional extended paper supply module Optional standard paper supply module
Output Stacker BPRF (Bourg Perforating Rotating Folding) Booklet Maker Perfect Binder Hole Puncher
Other 3rd party interface for OEM accessories also available

* Advanced Print

 Extended paper size and enhanced feed mode options are available to widen the range of paper sizes and weights that can be run on the  Digimaster HD System.
