Sprinter eXL

Stand-alone or inline.

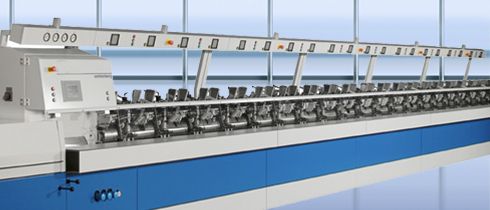

The gathering machine Sprinter eXL corresponds mainly with the Sprinter e series, however the format range and the number of stations which can be installed were expanded. The gathering machine Sprinter eXL is designed based on the modular concept. All elements can be combined individually and used both as stand-alone or inline with a perfect binder. The machine’s low height, clearly laid out arrangement and functional design represent a visible expression of modern mechanical engineering, without disregarding the technical reliability. In this machine the double gripper system, proved a thousand times, and the upright product transport are combined with state-of-art electronic and the latest development of vacuum generation. For generating a vacuum a new system is used; The Winjector which is an extremely compact suction-pump system for creating a vacuum inside the suction module of the respective magazine. Based on the multi-stage ejector principle the vacuum is generated locally.

System extensions (optional):

  • Drive belts in magazine
  • Imagecontrol
  • Image control barcode reading
  • Universal criss-cross delivery
  • Automatic rejection
  • Changeover to half-drum speed to reduce the separating speed
  • Handfeeding station for 1 or 2 pockets
  • Electrical disengaging clutch
  • Mechanical speed, inline 1000-8000 cycles/h
  • Stand-alone with criss-cross delivery 1000-5000 cycles/h
  • Product height 105- 485 mm
  • Product width 75- 320 mm
  • Number of stations 4 – 32

    (All details are product- and performance-linked)
